The SoundCam 2.0 is the first camera that creates acoustic images even in a high frequency range (greater than 24kHz). Like all SoundCam products, the system is very easy to use. The SoundCam 2.0 locates sound sources in real time and displays the results immediately on the screen.

SoundCam 2.0 can be used in a wide frequency range up to 60 kHz, making it suitable for a variety of applications, including product development, preventive maintenance and occupational safety.

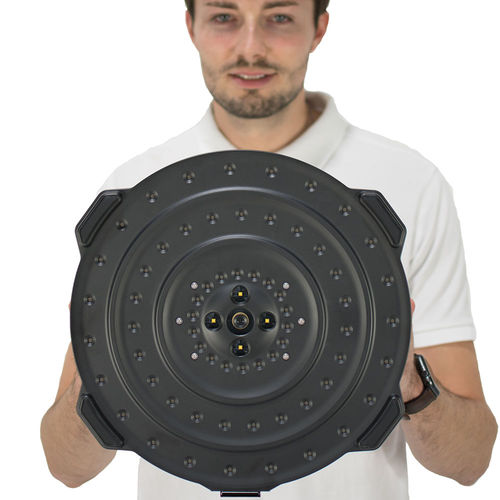

SoundCam 2.0 consists of 64 microphones with a sampling rate of 200 kHz, an optical camera, an integrated data acquisition and analysis system, and a display and control unit with touch screen and hardware buttons. The system displays high-resolution results on the screen in real time. The high speed and accuracy make the system special even in a high frequency range up to 60 kHz.

size of the acoustic camera - 340 mm
Spezifikationen der akustischen Kamera - <33 dB to 120 dB with up to 40 dB dynamic
number of microphones of the acoustic camera - 64 MEMS-microphones, 24 bit resolution,
Samplerate 200 kHz, frequencyrange 10 Hz - 60 kHz(recommended)
recommend frequency range of the acoustic camera - from 800 Hz with beamforming-methods; below with decreased resolution
material of the acoustic camera - polymer
weight of the acoustic camera - 3,4 kg

Parameter Name	Parameter Value
Applications	rugged for production
Technology	digital
Function	corona detection for leak detection for partial discharge detection measuring acoustic
Spectrum	hyperspectral, ultrasonic
Interface	USB Ethernet
Other characteristics	high-speed IP54 high dynamic range wireless low-noise level with touch screen handheld
