Facilitating and monitoring access to collection centres is important to support correct user behaviour, to have a detailed monitoring and to simplify the work of operators. From this view we created an innovative and immediate solution to manage users flow.

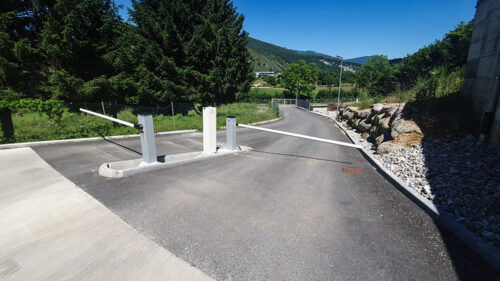

The municipal collection facility is a key element of the waste collection system. The ArcoGATE terminal enables and controls citizens access, managing barriers, photocells or traffic lights.

The automated system for accessing the recycling area is designed for:

user identification with card
right of access confirmation
count of vehicles within the area
management of the maximum number of simultaneous users
The ArcoCLOUD web platform supplies real-time information about usage data to:

acquire the list of users with access rights and create a white list
send real-time login information

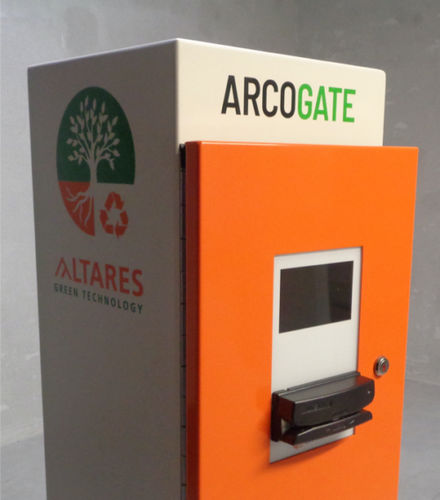

ArcoGATE is a vehicle access control terminal with user interface consisting of:

magnetic stripe reader with health card or specific card for user identification
125 kHz RFID reader
4 line LCD display to indicate the operations still to be performed
GPRS connection to the ArcoCLOUD platform for remote control with enabling and disabling users function
The terminal is also equipped with an electronic control board for barrier, photocells, user interface and traffic light.

Parameter Name	Parameter Value
Interface	touch screen
Mounting	floor-standing
Applications	access control monitoring
