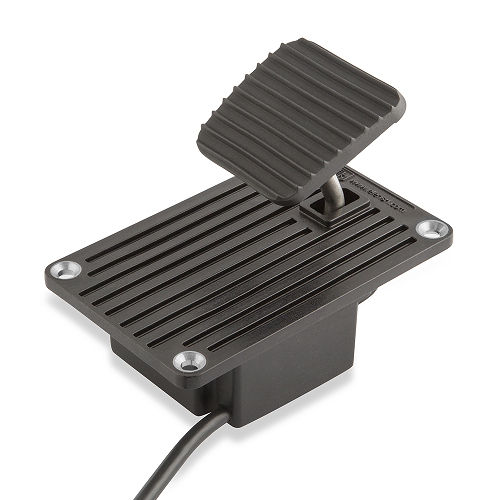

The Nomos series electronic pedals are ideal for all applications where compact dimensions and low-profile footboard are required.

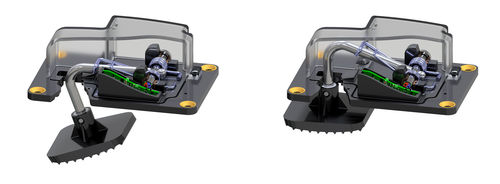

The innovative design integrates lever and fixing plate into a single easy-to-install compact solution.


SUITABLE FOR warehouse trucks, ride-on scrubbers and sweepers, electric vehicles, indoor special vehicles.

VERSATILITY

Supply voltage: 5 V; 12-24V; 24-48 V

Output: single / double; option IVS signal

Output types (programmable): voltage (0,5-4,5V; 0-10V) or current (4-20 mA) analog signal; PWM (0.1-1 kHz); CAN (SAE J1939 / CANopen)

IVS types: single / double; NO / NC; dry contact / open drain; programmable switch threshold

Cable and connector: customizable

RELIABILITY

Operating principle: Hall effect (contactless)

Protection degree: IP67

FUNCTIONAL SAFETY

Circuit redundancy: two isolated and galvanically separated circuits

Return to starting position: two independent springs

BEST USES

• Accelerator pedal for electronically controlled diesel engines subjected to emission standards from Stage IIIB on.

• Accelerator pedal for electrically-driven vehicles

• Inching pedal for work vehicles with hydrostatic transmission

• Compliance of control devices with functional safety standards

• Implementation of electronic drive-by-wire devices

• Use of a reliable device in harsh environments

• Technological upgrade of control pedals

• Cost saving and space optimization for replacement of pedal solutions with separate sensor

• Plug and play solution with integrated electronics

Parameter Name	Parameter Value
Function	accelerator
Technology	Hall effect
Type	single pedal
Other characteristics	compact IP67
Applications	for vehicles
