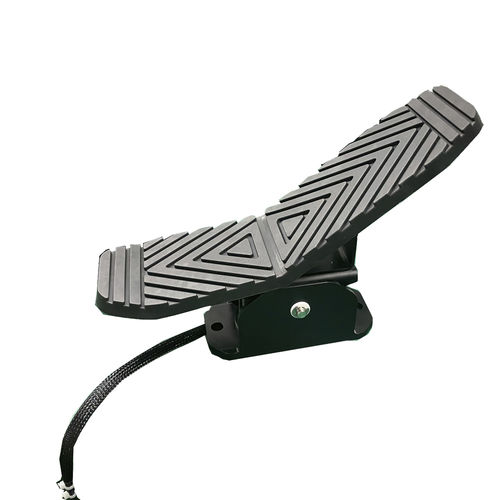

MKF-AP-01 is a professional accelerator Foot Pedal, this is equipped with a Hall Effect non-contact sensor that can be programmed for analog output and is mainly used in hydraulic proportional control and electronic throttle control systems.

• Tracked vehicle accelerator pedal
• Two-way accelerator pedal
• spring return
• Mechanical angle: ±15 degrees
• Power supply: DC5±0.5V
• Signal output: dual interleaved signal output
• 0.5-2.5-4.5V (Center 2.5V)
• Power: 32mA/@5V
• Protection: IP66
• Cable Length: 30CM Cable with DEUTSCH Connector
• DTM06-6P

Parameter Name	Parameter Value
Function	accelerator
Technology	Hall effect
Type	single pedal
Other characteristics	rugged corrosion-resistant low-profile adjustable IP66
Applications	for vehicles for railway applications for sewing machines
