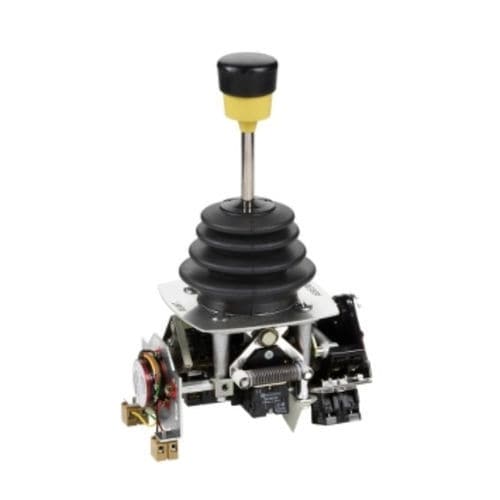

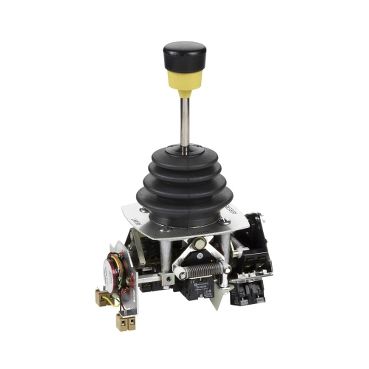

"This product is part of the Harmony XK range, an offer of joystick controllers and controller stations." "This joystick controller comes with variable composition and standard handle that can operate in all positions." "It has 1 NC contact with slow break, double break positive opening operation." "It is a joystick with conventional free air thermal current of 10A." "It is furnished with captive screw clamp terminals for electrical connection." "It offers electrical durability of about 1 million cycles and mechanical durability of about 3 million cycles. It is an IP54 rated product." "It is fitted with metal bezel and fixing collar." "It is suitable for medium hoisting applications. It is combined with automation system equipment's they ensure the starting, acceleration and braking of the drive motors." "This product is certified by CSA, EAC and CCC. It meets CSA C22.2 No 14 and EN/IEC 60947-5-1 standards." "3 ranges to operate a machine in four directions (up/down/right/left) inside a cabin."

Specifications
Main
Range of product
Harmony XK
Product or component type
Complete joystick controller
Product specific application
Medium hoisting applications
Device short name
XKDF
Sale per indivisible quantity
1
Complementary
Bezel material
Metal
Fixing collar material
Metal
Terminals description ISO n°1
(11-12)NC
Protective treatment
TC
Operator position information
All positions
Operator profile
Standard handle
Handle in the center
Handle in the center, 1 C/O, snap action
Dead man’s handle, 1 NC + 1 NO, slow-break
Dead man’s handle, 1 NO + 1 NO, slow-break
Handle, 1 NC + 1 NO
Handle, 1 NO + 1 NO
Control station composition
1 flush push-button
1 projecting push-button

Parameter Name	Parameter Value
Other characteristics	acceleration
