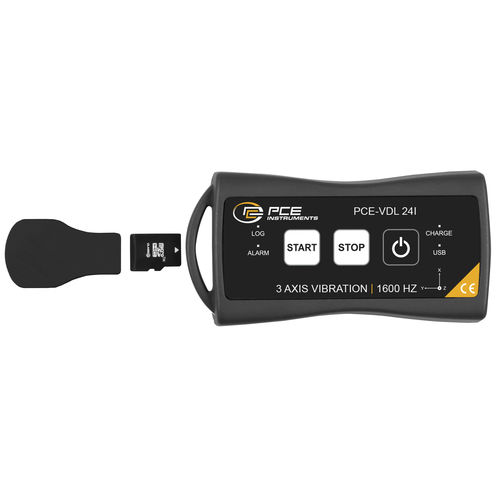

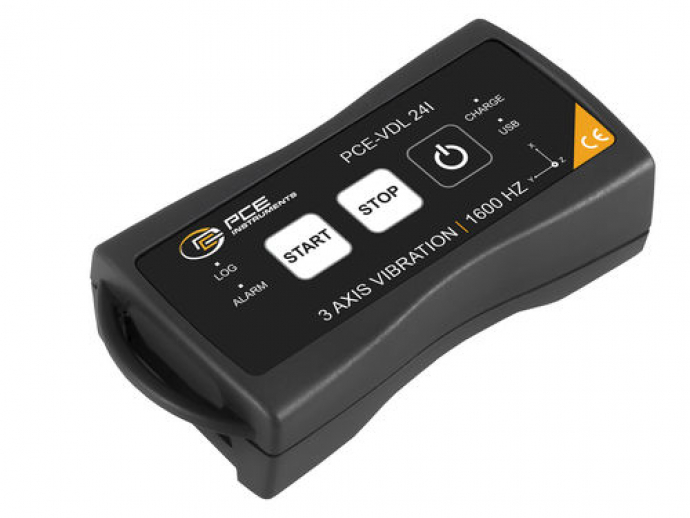

For this data logger PCE-VDL 24I the acceleration sensor is delivered with a sampling rate of 2400 Hz. The sensor measures the acceleration, which is currently acting on it (3 axes), for example such as at shock / vibration. The measurements take place at predetermined (selectable) time intervals.


- 3-Axis acceleration up to 800 Hz
- 2 GB SD memory card
- Evaluation software
- Small design: 86.8 x 44.1 x 22.2 mm

Parameter Name	Parameter Value
Measured quantity	acceleration, shock, vibration
Connector type	USB
Display	without display
Applications	for monitoring for logistics
Other characteristics	programmable battery-powered multifunction portable stand-alone high-accuracy continuous with integrated thermal collector with integrated operating system
