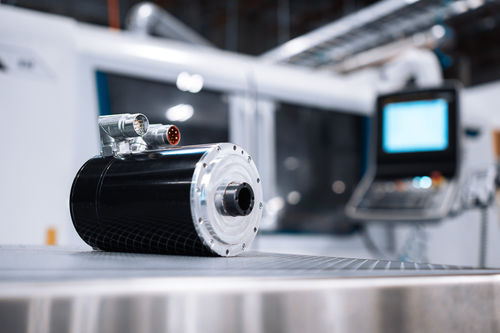

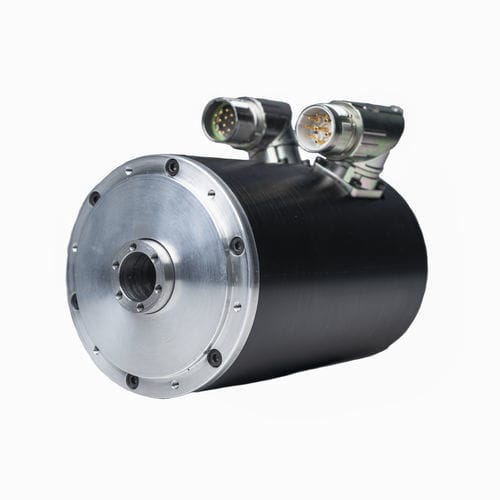

The LiveDrive® LDR series has industry-leading torque density in smaller sizes along with an IP54 rating and a through hole. LDR motors are housed with features designed specifically for machine builders to increase throughput, flexibility, and design efficiency.

Features of the LDR:
High torque density for improved performance and system lifetime
Through hole on motor for cable routing
Compact form factor reducing machine footprint
High precision and dynamic response with zero backlash
Integrated temperature sensor to help protect against overheating
Integrated absolute encoder offering high precision for optimal motion control
230 VAC compatibility
BiSS-C©, single-turn feedback options

Parameter Name	Parameter Value
AC/DC	AC
Type	induction
Voltage (V)	230 - 230
Protection class	IP54
Configuration	hollow-shaft compact small
Applications	packaging machine for robotics for the semiconductor industry for the food industry for the electronics industry for the pharmaceutical industry
Other characteristics	high-efficiency precision
Power (W)	788 - 788 946 - 946 954 - 954 98 - 98
Intensity (A)	3.27 - 4.32
Torque (Nm)	6.92 - 6.92 10.3 - 10.3 18.6 - 18.6 27.8 - 27.8
Rotational speed (rpm)	579 - 1868
Diameter (mm)	101.5 - 122
Operating temperature (°C)	0 - 40
