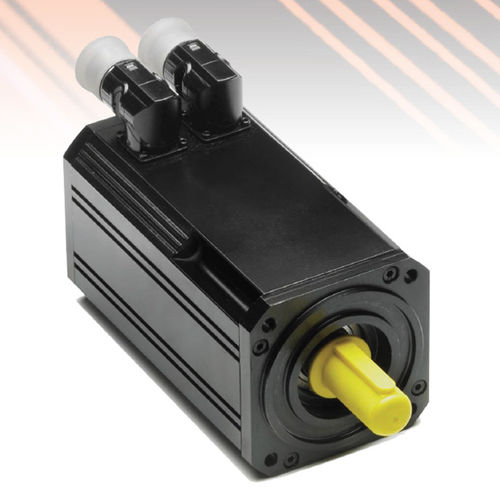

XtraforsPrime

Technical data

Standard version
• Resolver feedback
• Shaft with keyway
• Protection IP-65
• Rotatable angled connectors
• PTC thermal sensor
• RoHS conform

Options
• Various types of incremental encoders,
• SinCos encoders, Hiperface, EnDat
• Shaft without keyway
• Protection IP-67
• Shaft seal
• Straight connectors
• Direct cable output
• NTC thermal sensor

Customized versions
• Shafts (i.e. hollow shafts)
• Flanges, housings
• Windings
• Connections
• Executions according to customer’s

Specification
The modular construction concept is the basis for the wide range of standard models. The slotless stator design results in outstanding technical properties such as high speed, high torque, zero cogging, minimal torque ripple, high efficiency and high rigidity. Thus, these motors are perfectly suited for various demanding servo applications.

Parameter Name	Parameter Value
AC/DC	AC
Type	brushless
Voltage (V)	230 - 48
Protection class	IP65 IP67
Configuration	modular compact
Number of poles	multipole
Applications	for robotics for industrial applications
Other characteristics	high-torque high-speed
Intensity (A)	1.4 - 137
Torque (Nm)	0.23 - 450
Rotational speed (rpm)	1500 - 36000
Diameter (mm)	34 - 192
