BP
• Robust
• High Speed
• Very Low Maintenance.
• Brushless Restyling
• Improved Thermal Efficiency
• Sealing System Optimized

Features
– Robust
– Compact size
– High torque
– High speed
– Low maintenance
– Greater reliability
– Increased waterproofness
– Strengthened ball bearings
– Modular construction

Power
– Stall torque 0.70 to 3.4 Nm
– Sizes 55 and 70 mm

Versions
– Wide range of feedback solutions
– VCustomized versions
– CE compliant, UL listed

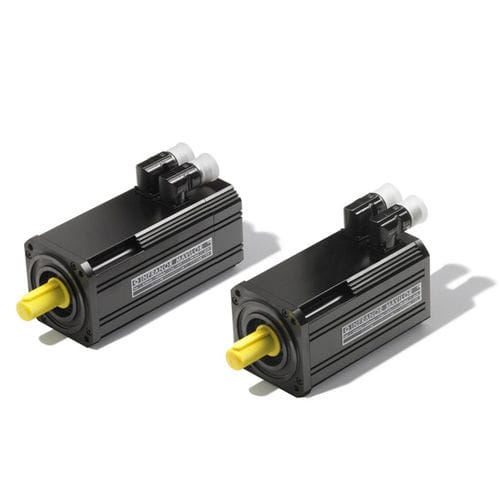

This range looks like a restyling of XtraforsBL 55 and 70mm motors with improved reliability, robustness, thermal efficiency and waterproofness.
The excellent torque / inertia-ratio gives these motors an extremely high acceleration capability.

Parameter Name	Parameter Value
AC/DC	AC
Type	brushless
Voltage (V)	230 - 230
Protection class	IP65 IP67 maintenance-free waterproof robust
Configuration	modular compact
Applications	for robotics industrial
Other characteristics	high-speed
Torque (Nm)	0.54 - 2.6
Rotational speed (rpm)	3800 - 11000
