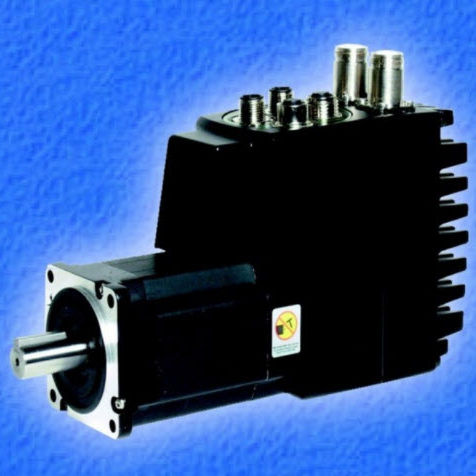

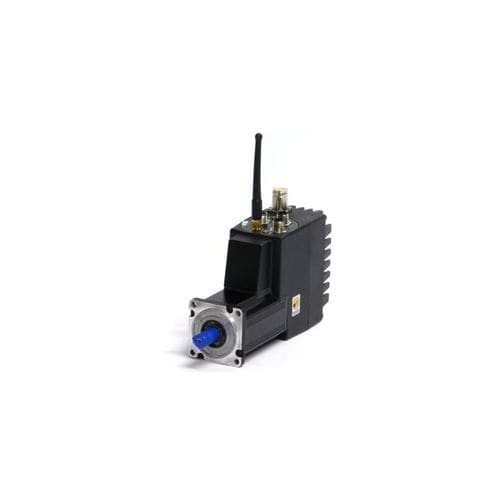

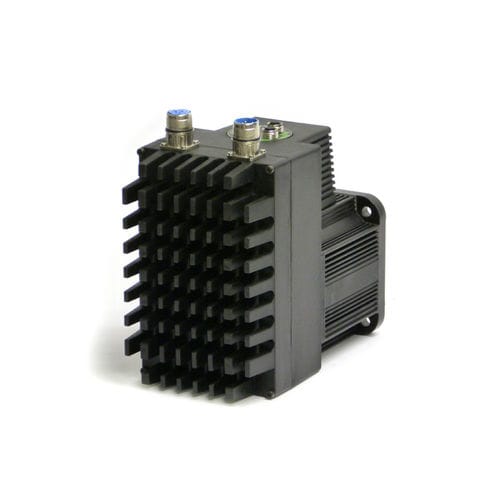

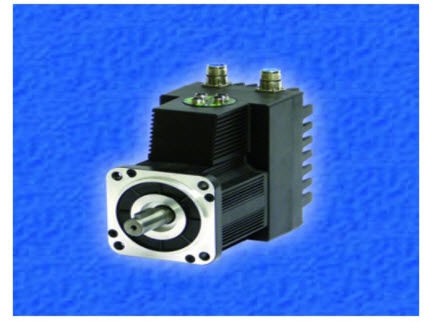

The conception of the TAC servo motors pursues the goal to integrate most of the components into the motor housing whilst being as flexible as possible.

TAC servo motors offer:

motor driver integrated into the motor housing
an expansion module for communication with control cable or bus system can be selected according to the existing PLC and integrated into the motor housing. Expansion modules are available for I/O and all common bus systems.
Options:

Nano PLC as expansion module for stand-alone solutions allowing a completely independent operation of the TAC motor. This Nano PLC can be integrated into higher-ranking control units as well.
external or integrated brakes
absolute value transmitter
Bluetooth, IEEE802.154 or wireless expansion modules
High speed multi-axis modules for faster communication

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 48
Protection class	IP67 IP55
Other characteristics	with integrated movement controller
Power (W)	46 - 46
Torque (Nm)	3.8 - 3.8
Rotational speed (rpm)	300 - 300
