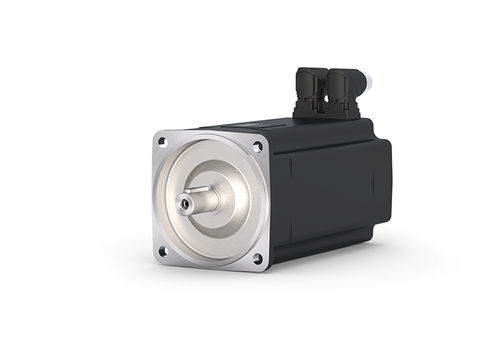

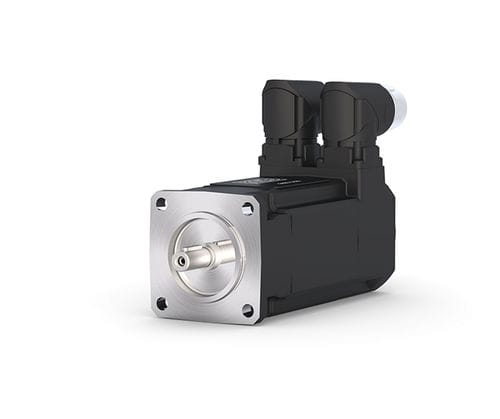

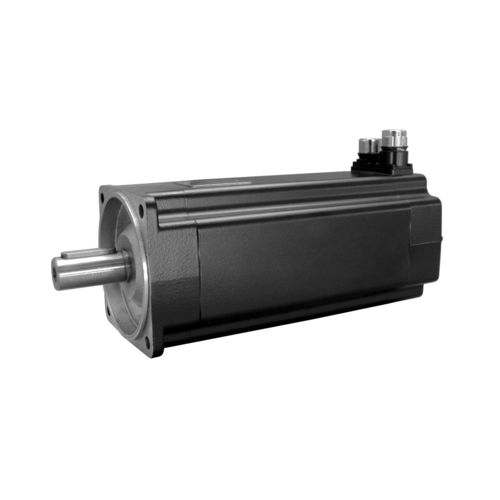

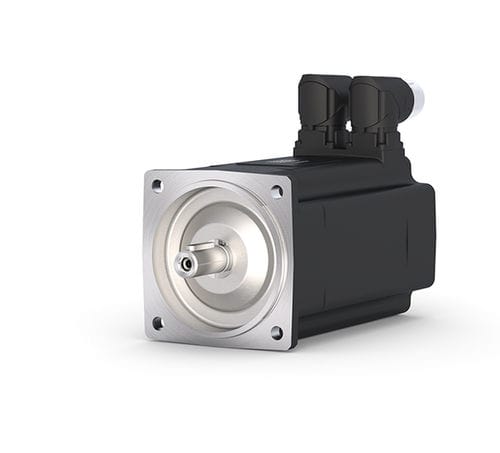

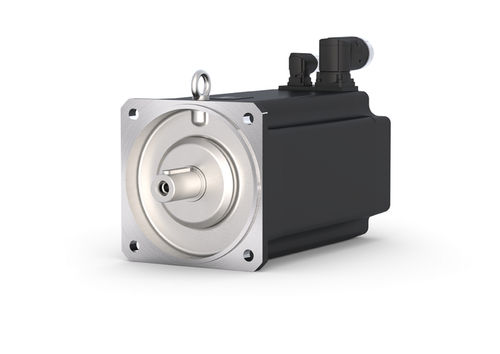

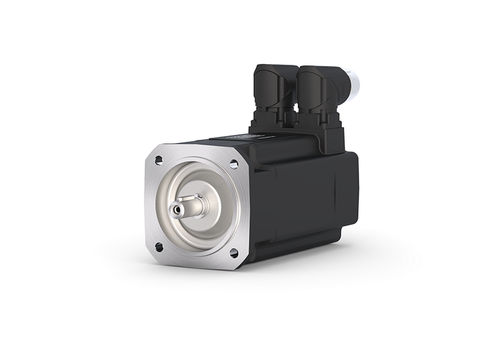

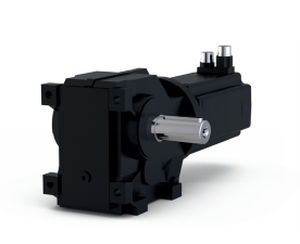

With the TA series, KEB offers permanent magnet synchronous motors, which are available, graded mechanically in six different sizes. Whether they are on their own or integrated into modular gear systems, they convince with high power density. The TA series offers all the characteristics of current servo technology with a wide range of options and rated speeds, and is the top choice for applications requiring high dynamics. When combined with KEB’s COMBIVERT F6 drive controllers and S6 servo drives, a powerful drive system can be achieved. An added advantage of the robust permanent magnet synchronous motors is that thanks to the direct input into the gear units, there is no need for motor adapters, so the servo geared motors are extremely compact and take up very little space.

Highlights

Integrated into the modular gear unit system
Designed for dynamic applications
400 V and 230 V across all sizes and speeds
Optimised for use on KEB’s COMBIVERT F6 and S6 drives
Motors MADE IN GERMANY

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 230
Configuration	permanent magnet modular
Cooling mechanism	forced ventilation
Other characteristics	with gearbox
Power (W)	11 - 30
Torque (Nm)	0.8 - 90
Rotational speed (rpm)	1500 - 6000
