About

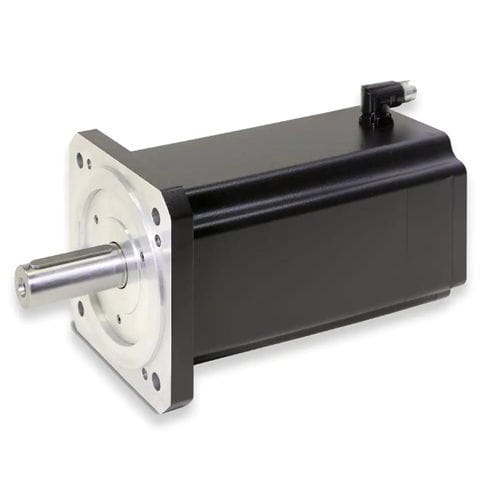

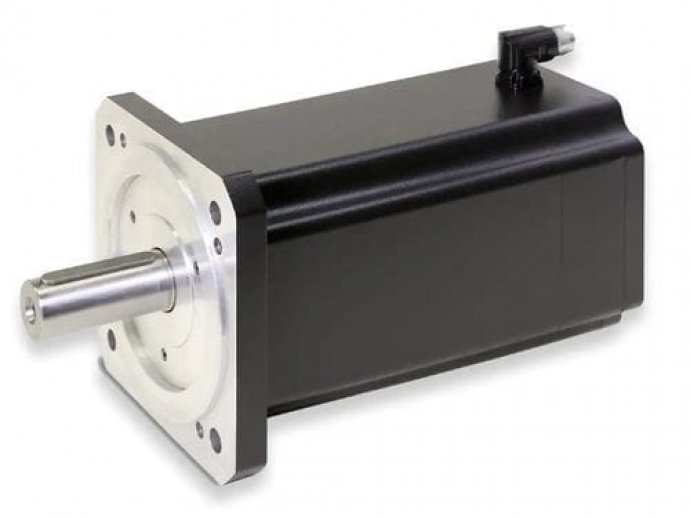

The SMB sériés brushless servo motors have been designed to combine cutting-edge technology with extremely high performance. Utilising innovative 'Salient Pôle' technology, featuring Neodymium-Iron-Boron magnets uniquely encapsulated to the motor shaft, SMB
synchronous servo motors can achieve very high accélérations and withstand high overloads without any risk of démagnétisation or detachment of the magnets. Additionally the motor's dimensions are considerably reduced, offering significant advantages in terms of specific torque and dynamic performance. Compared to traditional-technology brushless servo motors, the specific torque of SMB serrvo motors is approximately 30% higher and rotor inertias are extremely low, making it especially suited to highly dynamic applications.
The SMB brushless servo motor sériés offers a high degree of flexibility thanks to its extensive range of motor frame configurations, flange and shaft options, feedback devices and winding options.
Markets:
• - Factory Automation
• - Beverage
• - Miscellaneous Industrial
• - Miscellaneous Manufacturing
• - Lab/Diagnostic
• - Life Sciences
• - Pharma
Features/Benefits:
• - Speeds up to 7500 min-1 / Continuous stall torques from 0.19 to 60Nm
• - Low inertia rotor / High dynamic performance
• - Increased inertia and holding brake options available
• - High degree of flexibility thanks to a wide range of standard options
Applications:
• - Material Forming machines
• - Material Handling machines
• - In-Plant / Automotive Industry equipments
•Textile Machines
• - Robotics
• - Spécial Machines
• - Servo Hydraulic Pumps
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Type |
synchronous
|
| Voltage (V) |
230 - 230
|
| Protection class |
|
| Configuration |
|
| Number of poles |
8-pole
|
| Applications |
|
| Other characteristics |
|
| Power (W) |
0.1 - 9.4
|
| Torque (Nm) |
0.19 - 60
|
| Diameter (mm) |
15 - 40
|
| Operating temperature (°C) |
-10 - 40
|
