The PA SDI-Motors™ - Made to move

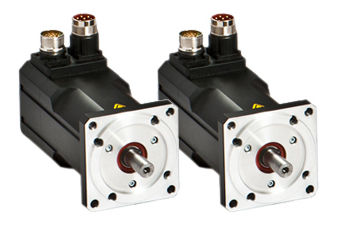

The servo motors of the PA SDI-Drive™ series PAT™ and PAH™ are made for dynamic motion of machine tools.

The motors of the new PAH™ series are segmental pole motors with an extremely high power density. All motors of these series are equipped with Neodymium magnets (Nd-Fe-Bo) and a 3-phase, 10-pole winding. Basically all motors are available with all current feedback-systems. All motors have a feedback- and motor-plug. A PTC is always integrated in the stator of the motor.

The PAT™ series are manufactured in conventional technology. All motors are equipped with Neodymium magnets (Nd-Fe-Bo) and have a 3-phase, 6-pole winding. Basically all motors are available with all current feedback-systems. All motors have a feedback- and motor-plug. A PTC is always integrated in the stator of the motor.

Parameter Name	Parameter Value
AC/DC	AC three-phase
Type	brushless
Voltage (V)	6 - 6
