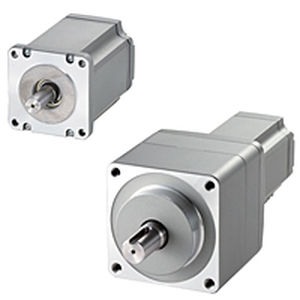

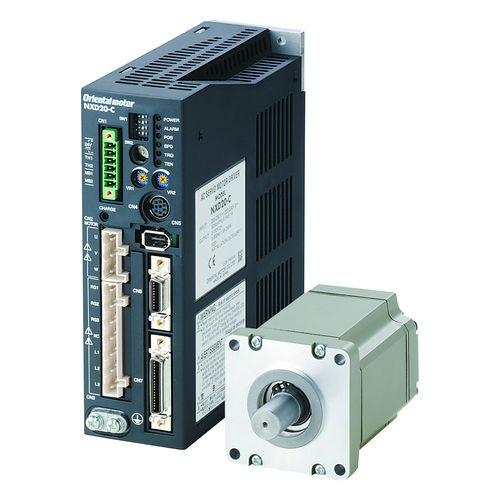

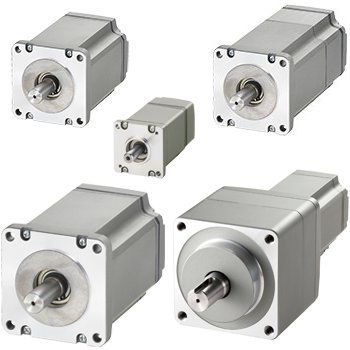

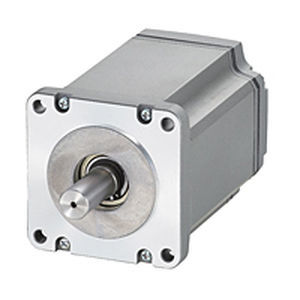

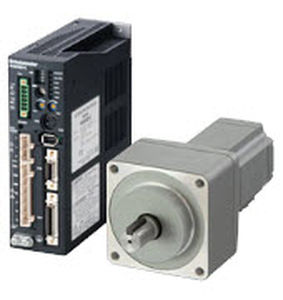

The NX Series is a Motor, Driver and Gearhead solution in one package. Planetary geared and electromechanical brake options are also available and come pre-assembled. Each package features a high performance servo system with 4 control modes and is capable of high accuracy control. Smooth operation can be achieved in high inertia loads or belt drive applications without manual tuning. 3 meter (9.8 ft.) motor and encoder cables are included. Four Control Modes:
• Position
• Torque
• Tension

Parameter Name	Parameter Value
AC/DC	AC
Type	brushless
Voltage (V)	100 - 100
Protection class	IP65
Configuration	with brake
Other characteristics	high-inertia with speed controller UL certified
Power (W)	50 - 50 100 - 100 200 - 200 400 - 400 750 - 750
Intensity (A)	0.7 - 4.7
Torque (Nm)	0.159 - 2.39
Rotational speed (rpm)	0 - 5500
Operating temperature (°C)	0 - 40
