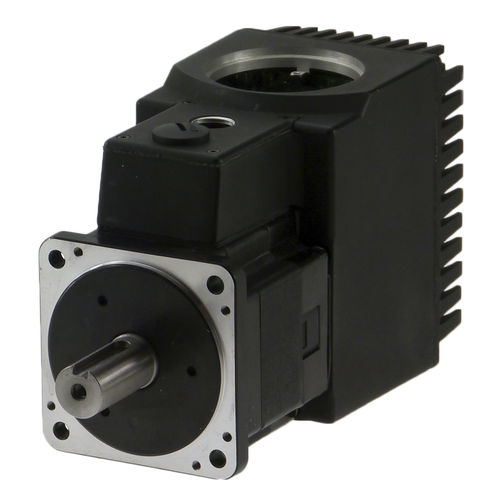

MAC800 - The complete solution for larger power ratings.
All with built-in mains power supply.
Choose between model with or without brake.
Also in IP66 version.
Choose Expansion module from the extensive selection for any application.

Motor size is:
• MAC800-D2 746W
• MAC800-D5 (with built-in brake) 746W

Expansion module you can choose between:
• Basic Modules
• Programmable Modules
• Field Bus Modules
• High Speed Multi-Axis Modules
• Wireless Modules

Most of them available with either cable glands, DSUB connectors and M12 connectors. See EXPANSION MODULES SELECTION CHART.

See the ACCESSORIES, GEARS, and POWER SUPPLIES for further possibilities.

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 110
Protection class	IP66 IP55 waterproof
Configuration	with brake compact
Cooling mechanism	air-cooled
Applications	industrial
Other characteristics	with gearbox programmable
Power (W)	560 - 560 734 - 734
Torque (Nm)	2.38 - 2.38
Rotational speed (rpm)	0 - 3000
