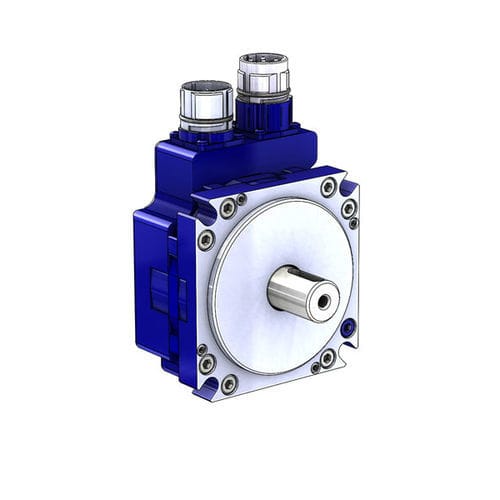

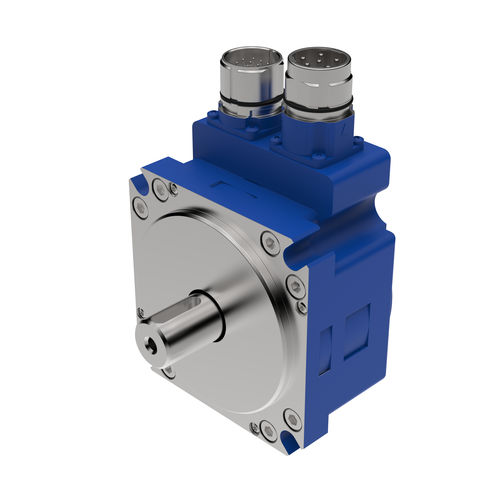

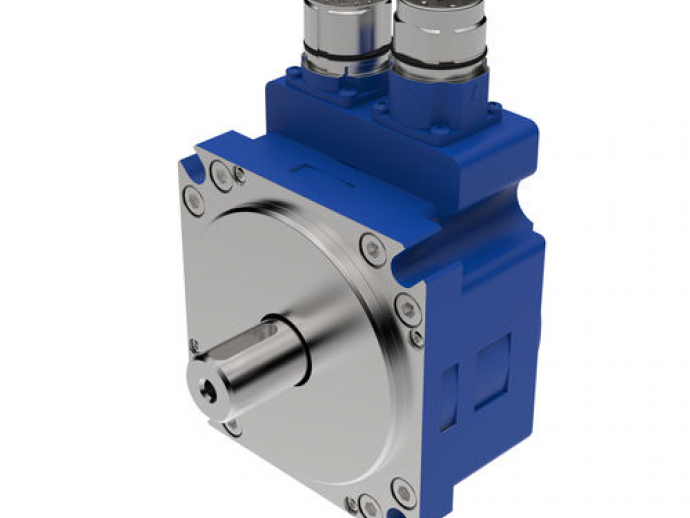

• Our smallest motor, HDT 09E, with a rated speed 6000 rpm, rated torque 1,05 Nm at a rated current 2.05A and the ultra compact length of 47,3 mm.
• Weight is only 1,7 kg.
• Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts.
• The motors can be supplied with or without brake.
• IP 65 as a standard be can be ordered with IP 67.
• For further information see datasheet for HDT 09E.

HDT 09E Product Data:
• Rated speed [rpm]: 6000
• Low-speed torque [Nm]: 1.3
• Rated torque [Nm]: 1.05
• Peak torque [Nm]: 2.8
• Rated current [A]: 2.05
• Length* [mm]: 47.3
• Flange size [mm]: 92
• Mass** [kg]: 1.7
• Inertia [kgcm^2]: 0.51
• Shaft dia [mm]: 19 j6

* Without Transducer and brake
** With resolver feedback system

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 230
Protection class	IP65 IP67 maintenance-free
Configuration	compact
Number of poles	10-pole
Applications	for robotics for the automotive industry for marine applications military
Other characteristics	high-torque low-inertia
Intensity (A)	2.05 - 2.05
Torque (Nm)	1.05 - 1.05
Rotational speed (rpm)	6000 - 6000
