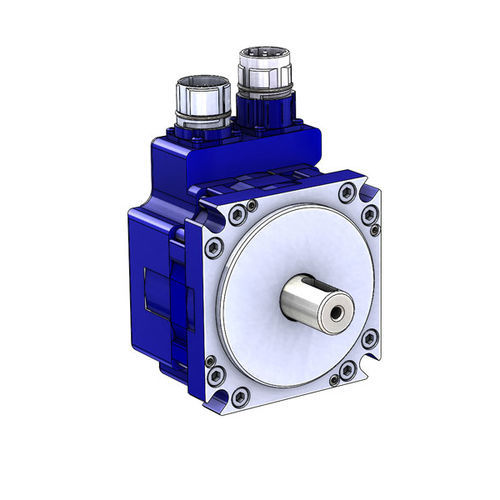

• Our most sold motor , HDD 09J, with a rated speed 3000 rpm, rated torque 2,3 Nm at a rated current 2.3A and a compact length of 59,6 mm.
• Weight is only 2,4 kg.
• Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts.
• The motors can be supplied with or without brake.
• IP 65 as a standard be can be ordered with IP 67.
• For further information see datasheet for HDD 09J.

HDT 09J Product Data:
• Rated speed [rpm]: 3000
• Low-speed torque [Nm]: 2.8
• Rated torque [Nm]: 2.5
• Peak torque [Nm]: 7.3
• Rated current [A]: 2.3
• Length* [mm]: 59.6
• Flange size [mm]: 92
• Mass** [kg]: 2.4
• Inertia [kgcm^2]: 2.8
• Shaft dia [mm]: 19 j6

* Without Transducer and brake
** With resolver feedback system

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 230
Protection class	IP65 IP67 maintenance-free
Configuration	compact
Number of poles	20-pole
Applications	for robotics for the automotive industry for marine applications military
Other characteristics	high-torque low-inertia
Intensity (A)	2.3 - 2.3
Torque (Nm)	2.5 - 2.5
Rotational speed (rpm)	3000 - 3000
