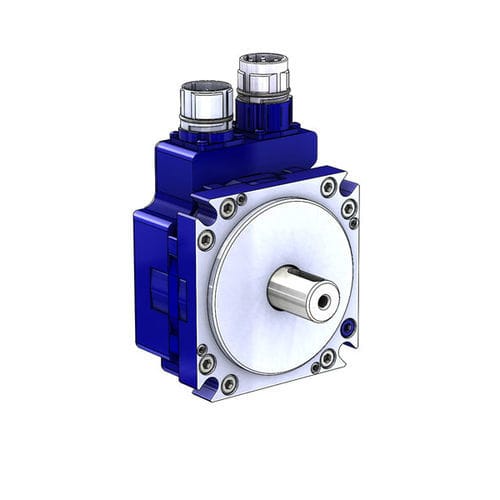

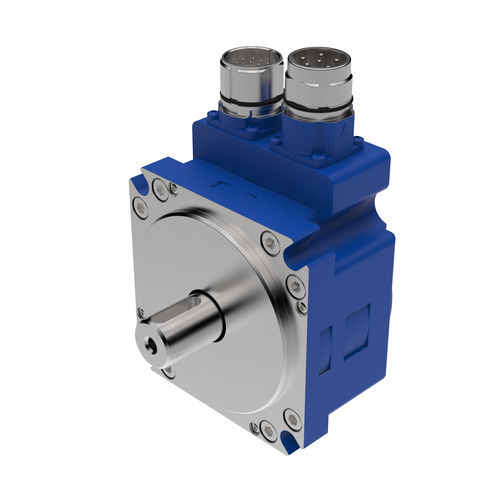

• Our smallest motor, HDD 09E, with a rated speed 3000 rpm, rated torque 1,2 Nm at a rated current 1.1A and the ultra compact length of 47,3 mm.
• For shorter accelerations you get a peak torque of 3.1 Nm at a current of 3A.
• Weight is only 1,8 kg.
• Resolver, Hiperface, EnDat protocol and a number of drive compatible drive pinouts.
• The motors can be supplied with or without brake.
• IP 65 as a standard be can be ordered with IP 67.
• For further information, see datasheet for HDD 09E.

HDD 09E Product Data:
• Rated speed [rpm]: 3000
• Low-speed torque [Nm]: 1.3
• Rated torque [Nm]: 1.2
• Peak torque [Nm]: 3.1
• Rated current [A]: 1.1
• Length* [mm]: 47.3
• Flange size [mm]: 92
• Mass** [kg]: 1.8
• Inertia [kgcm^2]: 1.3
• Shaft dia [mm]: 19 j6

* Without Transducer and brake
** With resolver feedback system

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 230
Protection class	IP65 IP67 maintenance-free
Configuration	compact small
Number of poles	20-pole
Applications	for robotics industrial for the automotive industry for marine applications military
Other characteristics	high-torque low-inertia
Intensity (A)	1.1 - 1.1
Torque (Nm)	0 - 1.3
Rotational speed (rpm)	3000 - 3000
