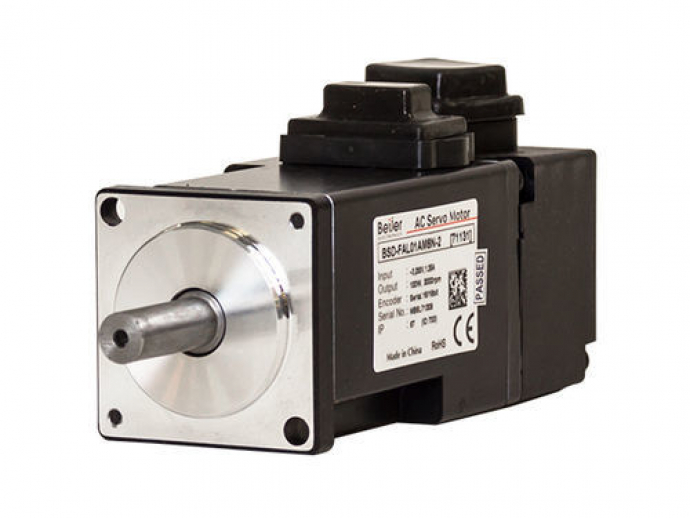

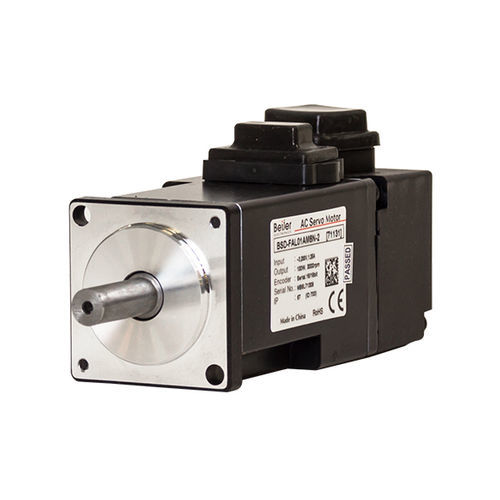

-230 VAC, 100 W
-40mm flange, 8mm shaft, 0.32/0.96Nm, 3000/5000rpm
-Absolute 18 bit multi turn encoder (262144 ppr)
-Low inertia

Mechanical
Inertia - 0.0023 kg•cm²
Flange size - 40 mm
Shaft diameter - 8 mm
Shaft type - Smooth
Maximum shaft axial force - 39 N
Maximum shaft radial force - 148 N
IP Class - IP65 (exkluding shaft penetration)
Weight - 0.8 kg
Ambient conditions
Environment - Avoid direct sunlight, no corrossive gas, inflammable gas, oil mist or dust
Humidity - 90% RH or less (no condensation)
Temperature range - Operating: 0 to 40 C°, Storage: -10 to +60 C°
Vibration - 5G
Brake
Holding brake - No
Holding torque - 0.32 Nm
Brake coil voltage - 24 VDC
Brake coil current - 0.25 A
Encoder
Encoder type - Absolute multi-turn 18bit (262144ppr)
Output ratings
Rated power - 100 W
Rated speed - 3000 rpm
Rated torque - 0.32 Nm
Maximum torque - 0.96 Nm
Tuning
Allowed load inertia ratio - 30 times motor inertia
Standard compliances
Applied directives - EMC Directive: EN 60034-1:2010 Low Voltage Directive: EN 60034-5:2001 + A1:2007

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	230 - 230
Protection class	IP65 EMC
Power (W)	100 - 800
Torque (Nm)	0.32 - 0.96
Rotational speed (rpm)	3000 - 5000
Diameter (mm)	8 - 8
