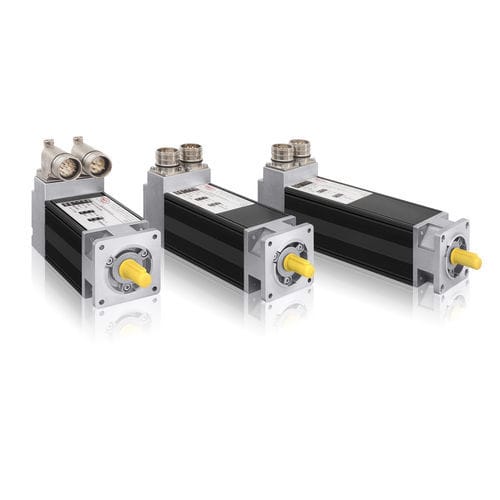

High dynamic servomotors with natural air cooling. Mechanics with flange in square case of 55mm and three body lengths.S1 service torque from 0.48 Nm to 1.1Nm.
Type
- Low inertia permanent magnet servomotor
Rotor
- rare earth permanent magnets ( NdFeB )
Insulation
- winding, class H; Motor Class F
Winding
Standard
- winding for 230VAC for drive powered at 230VAC or at 400VAC
- winding for 60VAC for drive powered at 60VDC
On demand
- other combinations of voltage and speed possible.
Insulation -
- winding in classH
- motor in class F
- Insulation suitable for 400VAC voltage
Thermal protection sensors
Standard
- PTC, only for sizes winded at 220/400V
Optional
- KTY84 only on some type
Cooling system
- natural air ( IC0041 )
Standard Protection
- IP54 / IP65 (exclusion of the shaft side). The IP65 protection on the shaft side must be requested and is considered effective only in the presence of an oil bath coupling or with the presence of lubricant.
Ballbearing
- ball bearings with double screen lubricated for life
Balancing
- Grade "R"
Concentricity and perpendicularity of the axis / flange
- grade "N" (normal) - according to IEC 72 - DIN0530
Shaft output
- with key, with coaxial threaded hole
Brake
- optional. Permanent magnet parking brake, 24VDC power supply with specific polarity. Brake engaged in the absence of power supply. Braking torque greater than the motor Tn
- optional. Zero-backlash permanent magnet parking brake with braking torque > Tn
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Type |
brushless
|
| Voltage (V) |
230 - 60
|
| Protection class |
|
| Configuration |
|
| Number of poles |
6-pole
|
| Cooling mechanism |
air-cooled
|
| Other characteristics |
low-inertia
|
| Power (W) |
|
| Intensity (A) |
0.5 - 93
|
| Torque (Nm) |
0.39 - 2.97
|
| Rotational speed (rpm) |
3000 - 3000
|
| Operating temperature (°C) |
0 - 40
|
