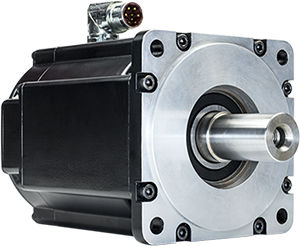

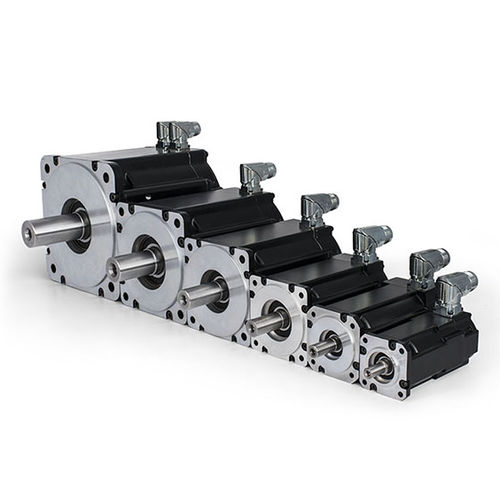

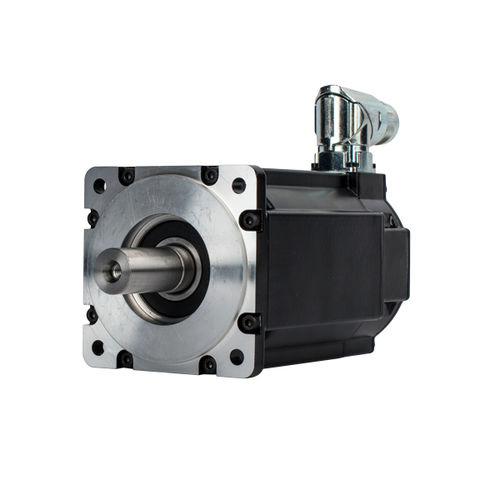

AKM2G represents the latest evolution of the industry-leading AKM motor family
With significant torque increases in the same motor size OEMs can achieve substantial performance improvement without changing the motor mounting or using more machine space.

Designers needing to reduce machine size benefit from AKM2G’s ability to deliver increased power and torque density in a smaller footprint.

• Extensive selection of feedback options to match application and performance requirements including options that support functional safety
• Shaft, mounting, and connector options
• Holding brake and thermal sensor options
• Available low voltage models bring the benefits of AKM2G to portable, mobile and battery powered applications where higher efficiency translates to a smaller motor with lower energy demand

Features
• Standard winding choices for 120 Vac to 480 Vac operation, and low voltage winding choices for 24 to 96 volts (Vdc or Vac) with various speed/torque performance curves
• Feedback options to match application requirements and drive selection
• Kollmorgen SFD3
• HIPERFACE DSL (supports functional safety applications)
• EnDat 2.2 (supports functional safety applications)
• Resolver
• Commutating Encoder is available as a standard option for low voltage motors
• Customer-specified feedback devices available through co-engineering
• Connector options (as appropriate for feedback type and motor size)
• SpeedTec (standard for single or dual cable designs)
• ytec (dual connector with single insertion at motor for size 2 motors)
• System cable options for use with Kollmorgen AKD2G servo drives and other AKD family servo drives
• Single cable SFD3/HIPERFACE DSL/EnDat 2.2

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Protection class	IP54 IP65
Other characteristics	low-voltage high-efficiency high-power multi-speed
Power (W)	175 - 11800
Torque (Nm)	0.065 - 72.1
Rotational speed (rpm)	3000 - 8000
