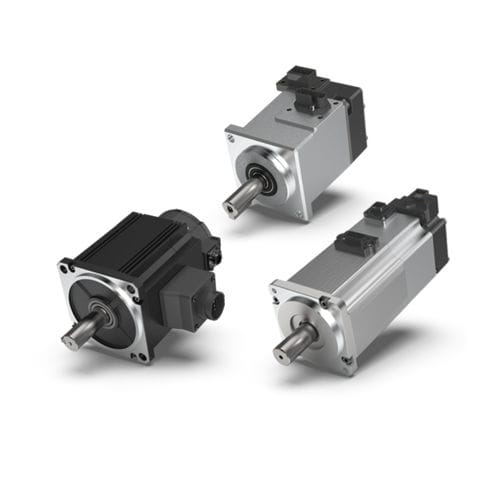

Even more compact design
Thanks to the split core structure and a new housing, we have been able to reduce not only the length by 30%, but also the weight by up to 10%.

High-resolution 23-bit encoder – can be used as an absolute or incremental rotary encoder
The 20-bit MINAS A5 encoder (1048576 pulses per revolution = ppr) has been upgraded to 23 bit (8388608 ppr).

Only one type of encoder for increment and absolute (Reduces number of models by half).

Available with two different seals (single/triple-lip)
An oil seal with triple lip has just been developed. It is ideally suited for protection against ingress of dust and oil in poor ambient environments.

IP67 degree of protection
Features enhanced durability in harsh industrial environments. The MINAS A5’s improved motor seals, the direct-mount connectors in the motor power supply, and the encoder input-output areas are contributing factors to this unit’s IP67 degree of protection.

Figure: Direct-mount connector

Parameter Name	Parameter Value
AC/DC	AC
Protection class	IP67
Configuration	compact
Applications	with built-in encoder industrial
Other characteristics	high-resolution low-inertia
Power (W)	50 - 50
