The high power density predestines the MAD motor series for applications in machine tools and printing machines as well as in metal forming. Fine-resolution encoder systems in single-turn or multi-turn design as well as outstanding radial runout ensure maximum machining precision. In addition to options such as keyway and holding brake, these motors are also available with special bearings for high-speed applications or for applications with increased radial loads. The motor degree of protection IP65 includes the blower motor and thus enables use even in rough industrial environments. The service-friendly motor design even allows easy fan replacement while the motor is running – particularly interesting in the printing industry.

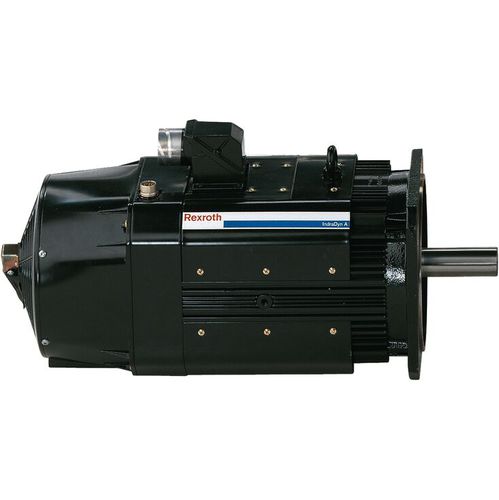

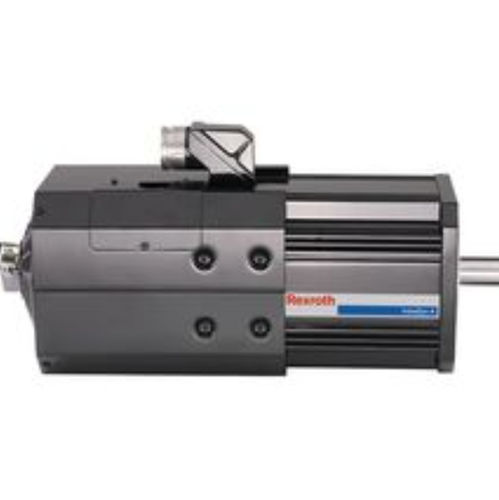

Asynchronous servo motor
MAD100
Rated power PN 13.1 kW
Maximum speed nmax 11000 rpm
Single-turn, multi-turn, absolute and incremental encoders
High protection type IP65, including fan motor
Service-friendly motor design

Asynchronous servo motor
MAD130
Rated power PN 31.4 kW
Maximum speed nmax 10000 rpm
Single-turn, multi-turn, absolute and incremental encoders
High protection type IP65, including fan motor
Service-friendly motor design

Asynchronous servo motor
MAD160
Rated power PN 44 kW
Maximum speed nmax 8000 rpm
Single-turn, multi-turn, absolute and incremental encoders
High protection type IP65, including fan motor
Service-friendly motor design

Asynchronous servo motor
MAD180
Rated power PN 62.8 kW
Maximum speed nmax 6000 rpm
Single-turn, multi-turn, absolute and incremental encoders
High protection type IP65, including fan motor
Service-friendly motor design

Parameter Name	Parameter Value
AC/DC	AC
Type	asynchronous
Protection class	IP65
Cooling mechanism	forced ventilation
Applications	industrial spindle
Other characteristics	high-resolution precision high-speed
Power (W)	13100 - 93100
Rotational speed (rpm)	3750 - 11000
