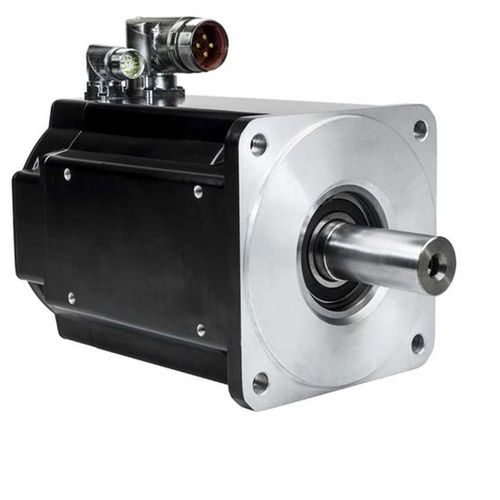

Perfect for a wide variety of servo motion needs including industrial robots, machine tools, textile/packing machinery and similarly dynamic motion control applications

Features

Built on open EtherCAT communications
Multiple options to best fit your application
Functional replacements for FANUC motors
Low inertia for quick positioning
Expandable design with up to 50 coordinated axes of control in a single system: 40 physical and 10 virtual
Integrated with PAC Machine Edition Software for consistent programming
Optional single cable connection for simple maintenance and installation
Exceptionally low cogging and harmonic distortion for consistently smooth performance

Specifications

Functional Replacement for following FANUC Motors
Alpha 22 / 4000HVis

Frame Size
7

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	240 - 480
Configuration	with brake
Applications	industrial for machine tools for the textile industry
Other characteristics	high-speed motion control EtherCAT NEMA
Power (W)	320 - 8580
Torque (Nm)	0.48 - 52.2
Rotational speed (rpm)	1800 - 8000
