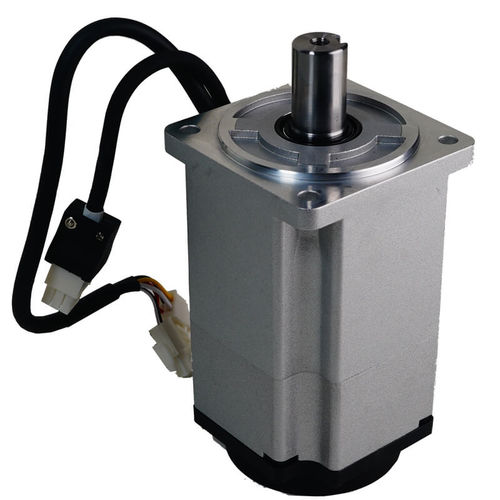

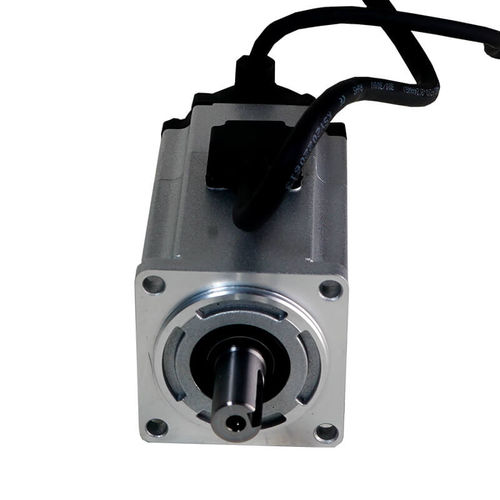

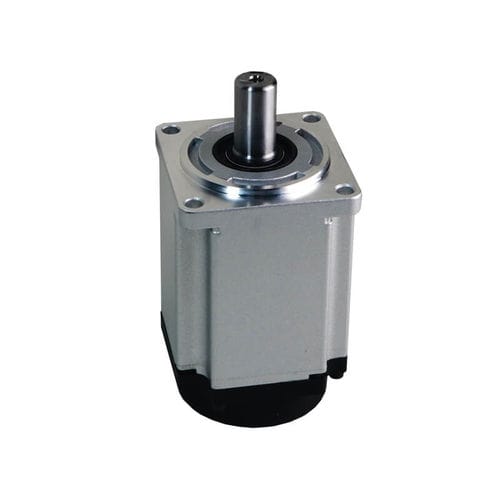

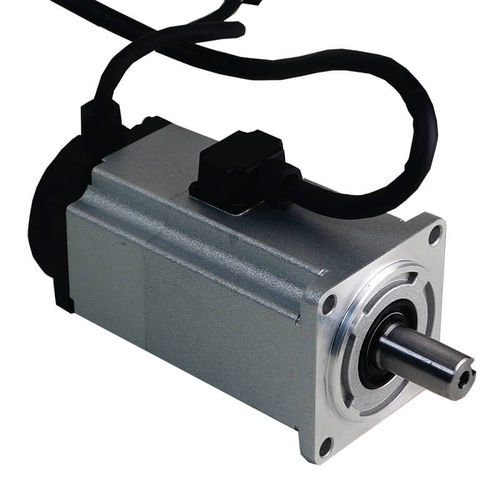

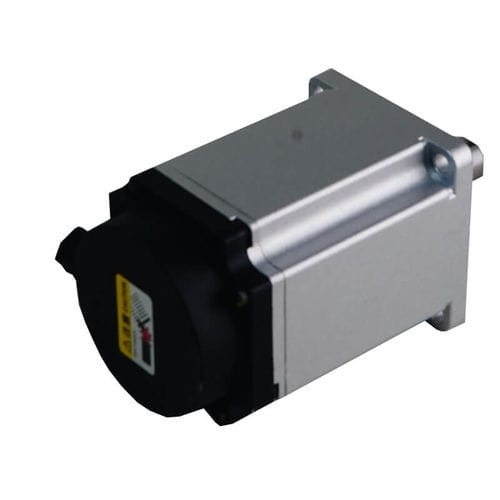

3000rpm AC Servo Motor with Brake 3000mm Power Lines Optional Encoder Lines

60/80 magnetic braided AC servo motor
17-bit single-turn absolute encoder
Air Circuit Breaker
It is used to protect the power line and cut off the circuit when an overcurrent occurs.
Noise Filter
Used to prevent noise from outside the power cord.
Electromagnetic Contactor
To turn on/off the servo power supply, an AC surge suppressor needs to be installed when using it.
Braking Resistor
The default built-in braking resistor, when the bus capacitance is insufficient, the P-C terminal is connected to an external braking resistor.


Series: FYS Series
Type: AC Servo Motor
Voltage: 220V
Rotating Speed: 3000rpm
Power: 200W - 1000W

Parameter Name	Parameter Value
AC/DC	AC
Type	universal
Voltage (V)	220 - 220
Protection class	for harsh environments reinforced
Configuration	with brake compact
Number of poles	multipole single-pole
Cooling mechanism	forced ventilation
Other characteristics	performance CNC programmable
Power (W)	200 - 200
Rotational speed (rpm)	3000 - 3000
