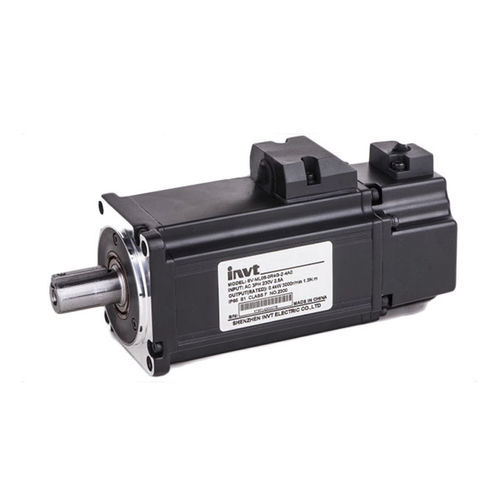

60-base series AC permanent magnet servo motor is universal-type AC servo motor developed by INVT. The power range is 200W~15kW, which can fully satisfy the function demands of general industry robots. It is widely applied in electronic manufacturing devices, digital control devices, packaging machinery, printing machinery, textile machinery, plastic machinery, glass device and test device, etc.

1. Convenient installation and strong universality;

2. No need for commissioning, just install to use;

3. Wide speed ratio and strong adaptability;

4. Well-matched high/low identification precision, wide application;

5. IP65 protection level, strong durability (ambient temp is -10~40℃);

6. Small inertia, universal interface and easy maintenance;

7. Max speed can be up to 5000rpm/min;

8. Momentary max torque (rated ratio 300%);

9. Comprehensive categories, with brake.

Parameter Name	Parameter Value
AC/DC	AC
Type	universal
Voltage (V)	220 - 220
Protection class	IP65
Configuration	permanent magnet with brake
Cooling mechanism	self-ventilated
Applications	industrial
Other characteristics	precision
Power (W)	200 - 200 400 - 400
Intensity (A)	1.5 - 2.8
Torque (Nm)	0.64 - 3.81
Rotational speed (rpm)	3000 - 3000
Operating temperature (°C)	-10 - 40
