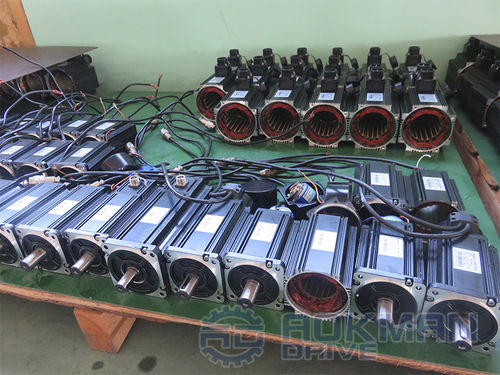

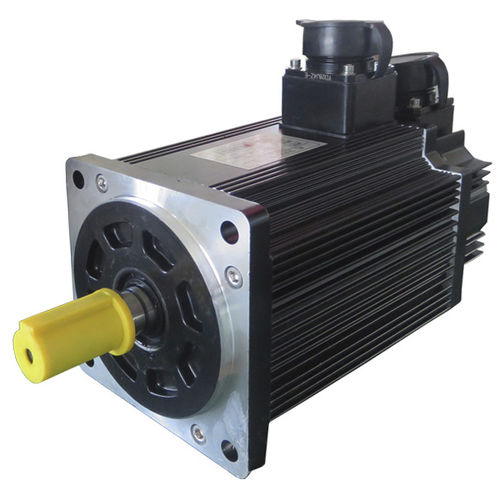

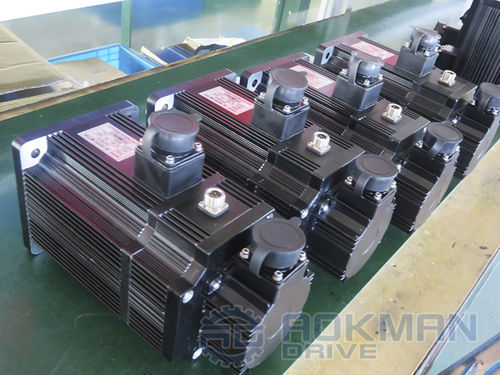

Permanent Magnet AC Servo Motors
Rated Power: 0.2~7.5kW
Rated Voltage: 220,380VAC
Rated Speed: 1000~3000RPM
Rated Torque: 0.6~48N.m
Encoder Resolution: 2500PPR
Insulation Class: F
Ingress Protection: IP65
Frame Sizes: 60, 80, 90, 110, 130, 150, 180
Rotor: Permanent Magnets (NdFeB 38SH)
Brakes:
Without Brakes
Electromagnetic Brakes (Power Supply 24VDC)
Permanent Magnet Brakes
Feedback:
Photoelectric Pulse Encoder
Resolver
Inertia: 0.0175~9.5 x 10-3 kg·m2
Encoder Resolution: 2500PPR (Pulse Per Revolution)
Insulation Class: F
Ingress Protection: IP65
Working Temperature: -20℃~40℃
Features:
High quality rare-earth magnets neodymium iron boron (NdFeB)
High performance
AOKMAN® permanent magnet ac servo motors are with extremely precise and efficient control characteristics
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Type |
synchronous
|
| Configuration |
permanent magnet
|
| Power (W) |
200 - 7500
|
| Torque (Nm) |
0.6 - 48
|
| Rotational speed (rpm) |
100 - 3000
|
