About

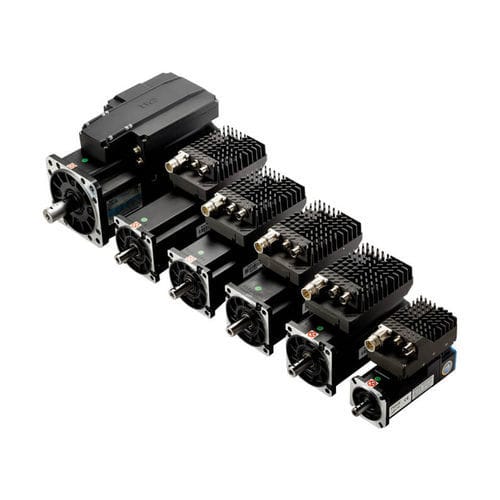

The Hitachi TorqueWire series of integral servo systems sets a new style in complex automatic machinery architecture. Hitachi TorqueWire motors are complete, self-sufficient servo axis building blocks which allow the design, integration and operation of large multi axis-systems with minimum hardware and surprising ease.
HIGHLIGHTS
Typical Supply Voltage Range: 310 – 560 Vdc
Rated Torque Range: 2,4 Nm – 70 Nm
Type of cooling: natural convection, water cooling and fan cooling (only for HTW07 models)
Servo Integrated Drive
EnDat Heidenhain Absolute Encoder single or multi-turn (280 arcsec accuracy) or two-pole resolver
Integrated RFI filter Class B
Protection degree: IP 67
about 60% of the size of a conventional servo design
smaller than comparable motors with a similar rating
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Type |
synchronous
|
| Number of axes |
multi-axis
|
| Output signal |
EtherCAT
|
| Product applications |
building
|
| Other characteristics |
|
| Intensity (A) |
1.6 - 27
|
| Power (W) |
800 - 20000
|
| Output power |
Max.: 30 kW (40.78863 hp)Min.: 0.5 kW (0.67981 hp)
|
