DX4
AC Servo Drive
D0100 - D0108
Introducing Trio's solutions with the new DX4 servo drives, our all new drive and motor packages that provide performance and dependability, optimised in every detail to do more with less.

Highlights
• Drive and Motion Coordinator fully integrated into Motion Perfect
• Matched with MX motor range of low and medium inertia motors
• EtherCAT support, update rates down to 125us
• Compact size
• Zero stacking installation
• Functional Safety Dual STO (SIL3, PLe)
• 200Vac from 50W up to 3kW
• 20-bit incremental or 23-bit absolute encoder interface
• 350% overload capability
• Internal drive protection functions
• 7 digital inputs, 2 dedicated touch probe inputs for position latching
• 4 digital outputs, second encoder interface for dual encoder application
• Comprehensive tuning technology including: Auto-tuning function, adaptive vibration suppression, friction compensation
• Field upgradable firmware

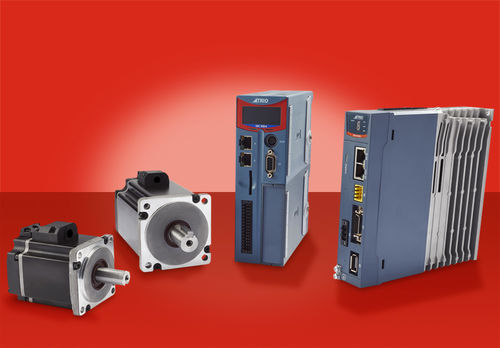

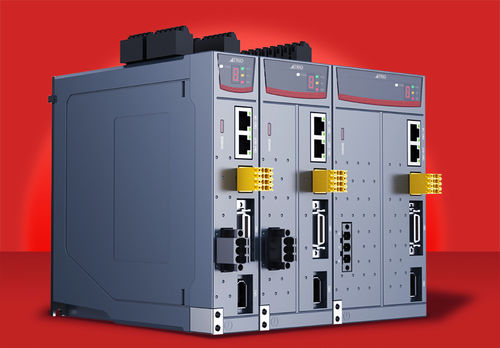

The DX4 comes in 3 frame sizes with power ratings from 50W to 3kW. Designed to be matched with the MX motors and accessories it offers a high-speed, high-precision machine solution.

The DX4 is designed to work seamlessly with Trio's EtherCAT controllers and be fully integrated into Trio’s application development tool, Motion Perfect allowing complete machine configuration from one tool; commissioning, diagnostics and programming.

With a focus on ease of use, the DX4 minimises setup time allowing you to focus on your application.

Parameter Name	Parameter Value
AC/DC	AC
Output signal	digital, EtherCAT
Product applications	3D motion motor
Voltage (V)	200 - 200
Other characteristics	compact integrated
Output power	Max.: 3,000 W (4.07886 hp)Min.: 50 W (0.06798 hp)
