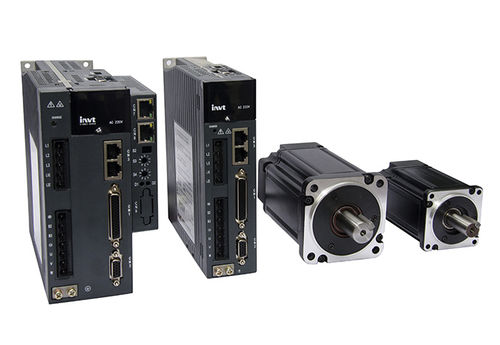

About
INVT takes users upgrade as the starting point and does its utmost to build the industry star products to meet the industry market and user needs. Leading control performance combined with industry needs only for stimulating the perfect integration of servo systems and application environments.
● Superior product performance
Industry-leading speed response: speed response frequency up to 2.0kHz, which has significantly improved the processing speed, shorten the adjusting time to maximize the high-end mechanical performance.
Excellent positioning accuracy: supporting 23-bit high-resolution encoder, enhancing the accuracy of 64 times compared with ordinary 17-bit encoder
Complete products, rich power section: covering 0.1kW-55kW, wide application of equipment
● Rich and practical features
Full closed-loop control: support the encoder or grating scale installed in the external load side, achieve full closed-loop control, reduce the impact of mechanical transmission backlash to enhance the machine terminal positioning accuracy.
Internal position control: Achieve 128-position internal position control via input terminal command combination (external I / O or bus control). For simple motion control, simplify the PLC unit and optimize the user external configuration through the internal simple program design.
Electronic cam function: Cam profile up to 3600 points; curve between the two points can complete automatic smooth difference to make the mechanical operation more smoothly; ServoPlorer software supports cam planning and setting function, which is suitable for flying shear, chasing and other master and slave applications occasion.
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Type |
|
| Output signal |
digital, EtherCAT, CANopen, Ethernet, Modbus, PROFIBUS, PROFIBUS DP, DC output
|
| Product applications |
|
| Voltage (V) |
220 - 220
|
| Intensity (A) |
2 - 16
|
| Power (W) |
|
| Output power |
Max.: 5.5 kW (7.47792 hp)Min.: 0.2 kW (0.27192 hp)
|
