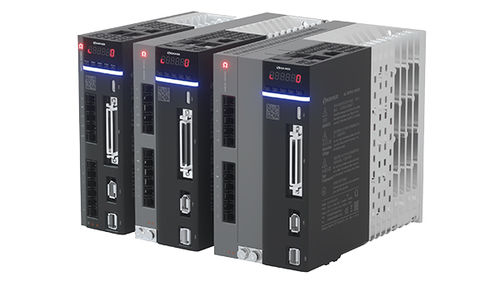

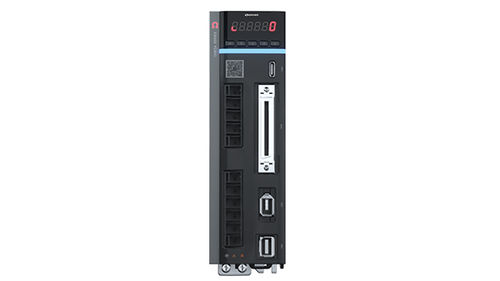

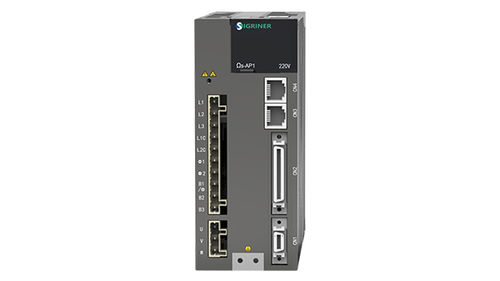

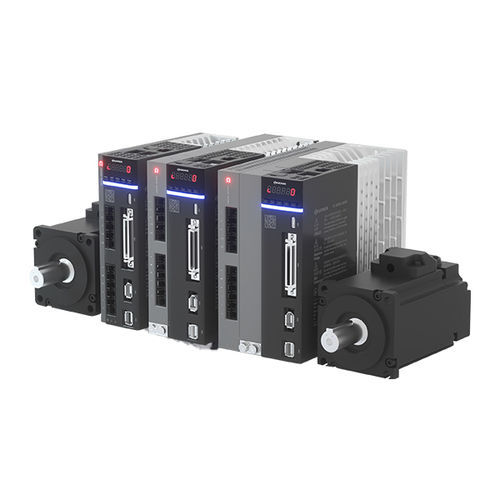

AC Servo Drive Ω6 Series (Communication: Pulse/Analog/EtherCAT)

· Self-tuning, saving 90% of the equipment debugging time
· Speed loop bandwidth 3.5kHz
· Current loop refresh rate 1MHz
· With three-way 16-digit analog command entered, the change in 2 mv voltage can be distinguished and the control precision can be improved by 16 times
· Strong power can easy handling 115% overload rate of continuous load，and 350% instantaneous overload
· Response to IO in 1 μs makes it easy to deal with the needs of aerial photography and probe；With two-degree-of-freedom control + pseudo-differential feedforward control, both high-speed response and strong interference are available；Equipped with 16 M pulse control interface, the control precision can be increased by 4 times
· Friction compensation + over-quadrant bump inhibition
· New gantry synchronization algorithm + standard RJ45 socket
· On-line inertia identification + on-line parameter self-tuning
· V-shaped anti-vibration control + end vibration control + self-adaptive notch filter

Typical Applications

· Lithium industry
· CNC machine tools
· 3C industry
· Glass panel processing
· Photovoltaic industry
· Dispensing machine
· Cutting equipment
· Packaging machinery
· Textile machinery

Parameter Name	Parameter Value
AC/DC	AC
Type	digital Modbus
Output signal	analog, USB, EtherCAT, Modbus
Product applications	for packaging machines for CNC machines for cutting applications for textiles
Voltage (V)	230 - 200
Other characteristics	high-performance Modbus
Intensity (A)	2.1 - 18.1
Power (W)	200 - 3000
