General
AMC sériés AC ammeter&voltmeter, adopting AC sampling technology, can directly measure current and voltage of three phase grid. It can be used for local display.and connecting industrial control device to form measuring control System .

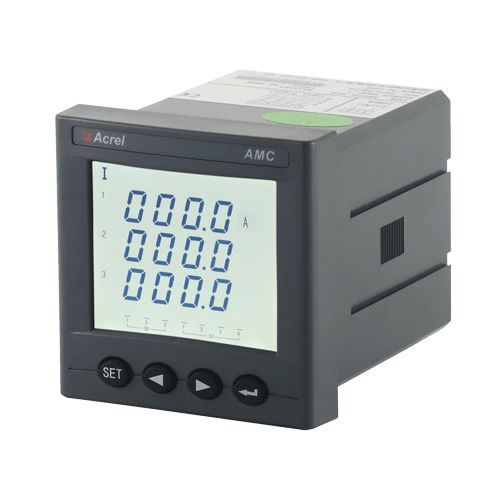

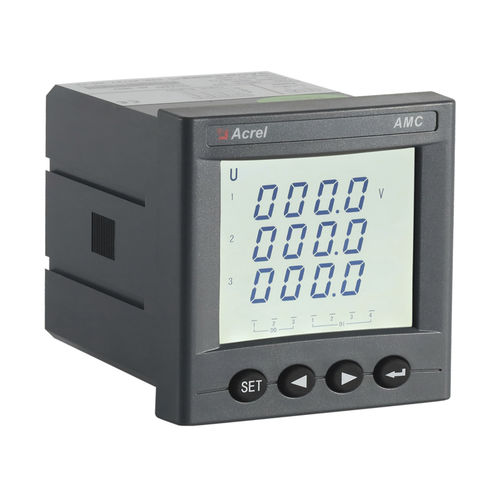

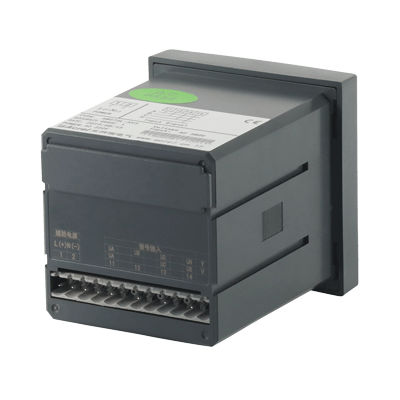

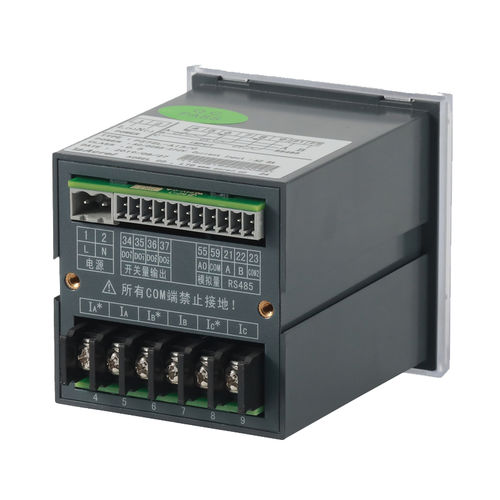

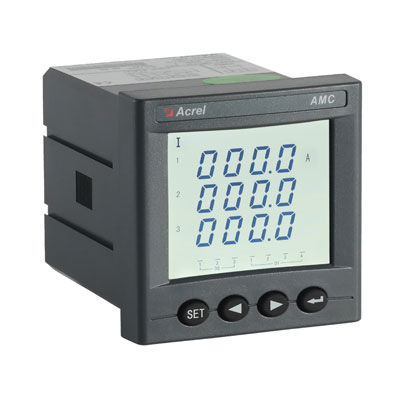

AMC72L-AV3 Programmable Meter
● LCD Display;
● 1 x RS485 with programmable Modbus RTU；
● Optional function: Alarm, Analog output, DI/DO and communication;
● Economic programmable meter;
● Accuracy: Class 0.5

Function
Accuracy
Class 0.5

Frequency
Range: 45-65Hz

Auxiliary power supply
Voltage range: AC220V

Power consumption: <5VA

Consumption
Power consumption of each voltage, current input circuit is less than 0.5VA

Parameter Name	Parameter Value
Measured value	AC, voltage
Display	LCD
Type	panel-mount
Other characteristics	programmable Modbus with alarm analog output
