Convincing: performance that sets the standards

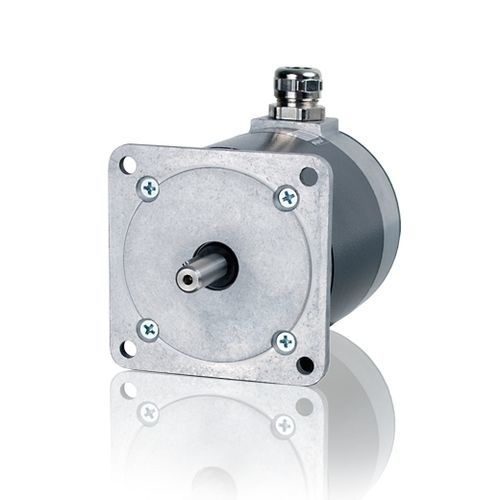

Like the ZSS, the ZSH stepper motors set powerful accents in every movement. They expand the ZSS motors with diameters of 57 to 107 mm.

Technical Details
• 2-phase hybrid stepper motors for unipolar or bipolar control mode
• Holding torques from 0.45 to 17 Nm
• Diameters ZSH: 57 to 107
• NEMA compatible
• Number of steps/rev.: 200, step angle: 1.8°
• Minimum protection mode: IP54, IP68 on request
• Permissible surface temperature: -30 °C to +80 °C
(short-time up to 100 °C)

Available Models:
• Sizes and windings: see table in the data sheet
• Free wire ends or terminal box
• Double shaft
• Gear
• Motor brake
• Encoder

Parameter Name	Parameter Value
AC/DC	AC
Type	hybrid stepper
Voltage (V)	24 - 24
Protection class	IP54 IP68
Number of poles	bipolar
Other characteristics	high-torque NEMA
Intensity (A)	1.4 - 12.5
Torque (Nm)	0.45 - 17
Operating temperature (°C)	-30 - 80
