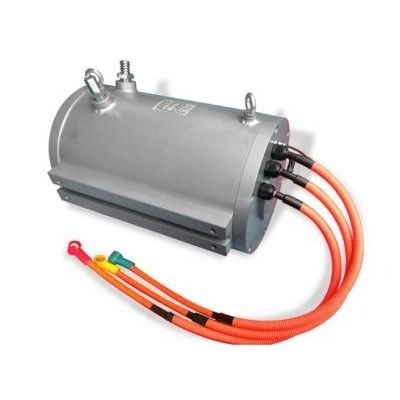

Model YCT60-380-B35
Rated power 60KW
Rated speed 1800r
Rated torque 318N.m
Rated voltage 380V
Current Rating 169A
Peak current 486A
Starting torque 640N.m Maximum speed 4500r Weight 158kg
Be applicable Passenger bus
Explanation According to the need to design a rated voltage range: 108-380V, rated speed range: 1800r-5000r / min, maximum speed: 9000r / min
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Type |
synchronous
|
| Configuration |
permanent magnet
|
| Power (W) |
60000 - 60000
|
| Torque (Nm) |
318 - 640
|
| Rotational speed (rpm) |
1800 - 4500
|
