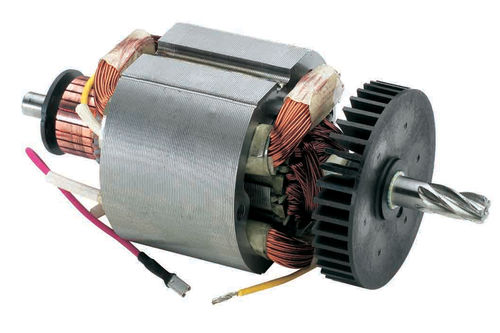

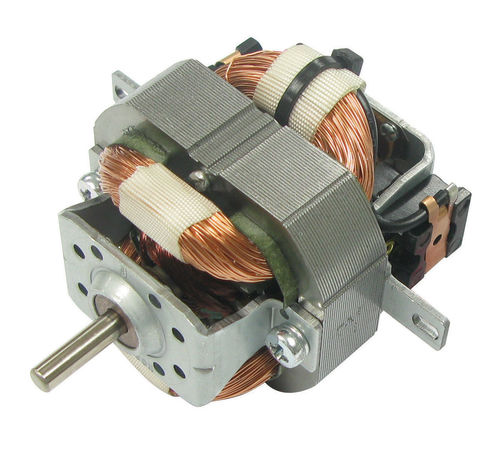

Universal Motors

The Johnson Electric Universal motor series is an industry benchmark for many applications including home technologies, personal care and power equipment. The Quattro Pole product line sets a new performance standard by providing a 30% improvement in power density. This range of Universal and Quattro Pole motor platforms are custom engineered to meet the power, size and life requirements of the customer’s application. The platform motors below are examples used in the applications noted. The pdf product datasheet provides performance details of these motors. Contact us for sample availability and your custom engineering requirements.

Parameter Name	Parameter Value
AC/DC	AC
Type	universal
Number of poles	4-pole
Other characteristics	custom
Power (W)	38 - 820
Torque (Nm)	0.025 - 0.65
Rotational speed (rpm)	7994 - 33990
Diameter (mm)	54 - 103
