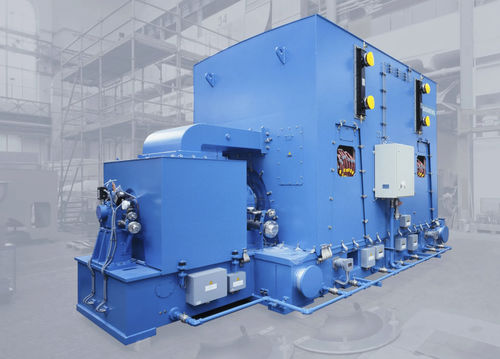

The SIMOTICS HV HS can cover complex applications like compressors, gas storage, LNG plants and generators. With a power rating of up to 105 MW (and higher) and a speed of up to 6.700 rpm. This Motor, equipped with a solid cylindrical rotor, sets standards when it comes to the availability and power.

Benefits at a glance

Your advantages
•Robust design for high reliability and long lifetime even at high speeds in the megawatt range
•High utilization, high efficiency, and low operating costs
•High mechanical stability, minimized noise level
•Optimized vibration behavior
•Largest installed base for such applications

Features
•A solid cylindrical turbo rotor with pedestal type sleeve bearings and an outboard brushless exciter
•Modular construction, combining a torsion resistant base frame, a lift off stator assembly and a modular steel enclosure

Parameter Name	Parameter Value
AC/DC	AC
Type	brushless
Voltage (V)	1000 - 1000
Protection class	IP55 IP23 rugged
Configuration	modular cylindrical
Number of poles	4-pole 2-pole
Applications	for compressors
Other characteristics	high-voltage high-efficiency low-noise high-speed low-vibration outboard
Rotational speed (rpm)	3000 - 6700
