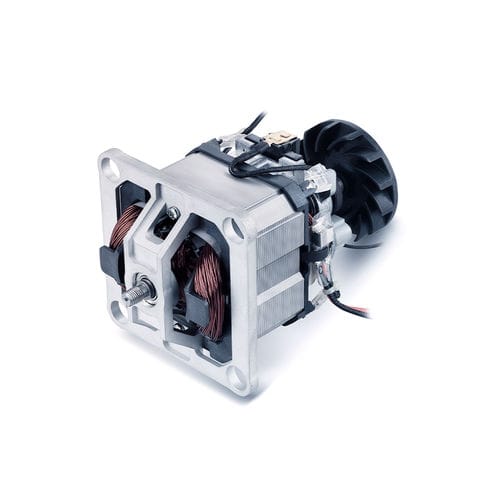

Multi-functional Kitchen Robot AC Universal Motor

1.Introduction
The Kitchen Robot Motor Motor(230V), designed for a famous kitchen robot brand, provides the ideal speed and torque for mixing, breaking the wall, grinding, cooking, with long life, low noise, no peculiar smell and other advantages. Power Motor has a mature customized platform for multi-functional kitchen robot, which can provide huge prototype data for reference.

2.Specification
•Model:PU95 series
•Voltage:230V（Optional 100-230V）
•Torque:827 mN.m
•Power:1270 W
•Speed:15000 RPM


3.Advantage
• High Torque
• Long Life
• Low Noise
• No Smell

4.Customizable Conbinations: Precision Gearboxs, Encoders
Power Motor provides more than 100,000 kinds of AC Motor application datas for customers to reference, and with a specific reduction ratio of the gearbox(planetary, worm, spur, helical) or the corresponding encoder, rapid integration and design of AC Motor Solutions that meet or exceed customer needs. The two kinds of AC Universal Motors (AC motors and shaded pole motor) run in the range of 100 ~ 240V / 50 ~ 60Hz, and are fully used in the fields of household appliances, automation, medical healthcare and power tools, such as: blender, juicer, kitchen robot, vacuum cleaner, coffee machine, nebulizer, lawn mower, etc.

Parameter Name	Parameter Value
AC/DC	AC
Type	universal
Number of poles	single-pole
Other characteristics	multi-speed high-efficiency high-torque low-vibration with integrated controller variable-torque
Power (W)	88 - 88
Torque (Nm)	0.05 - 0.05
Rotational speed (rpm)	16900 - 16900
