SERIES HIGH TEMPERATURE AND HIGH HUMIDITY ASYNCHRONOUS MOTOR

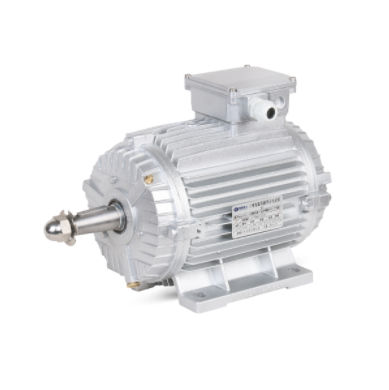

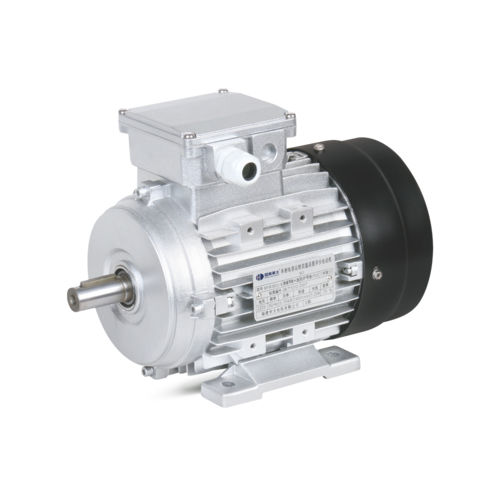

MSW/MYW series high temperature and high humidity asynchronous motor, this special motor with ventilator fan is used in high temperature and high humidity environment. This series ac motor is designed based on the characteristic of blower-pump load, motor shell adopts aluminum alloy material, fastening piece adopts stainless steel and copper, attractive appearance. According the analysis methods of advanced thermodynamic, not only reduce the electromagnetic loads of motor, but also increase the performance efficiency, energy saving. The motor adopts the material for resistant to high temperature and insulation class is class H, the motor can safety operation in high temperature environment. The motor can resistant to ageing and burn out. The motors' protection class is Ip55, increase the dustproof, water-repellent, rotproof capability. The motor can reversible long-term operated in the high temperature and high humidity vapor environment. The motor structure:adopts the straight shaft extension and subulate shaft-extension, special grease lubricant of resistant to high temperature bearing. low noise and small vibration. The motor adopts external structure injected lubricating oil. It not only increases the service life of bearing, but also avoids the tiredness of oilingdisassembly.As the clients' request, we can product the motor.

The bearing material:stainless steel and chrome steel.

The length of shaft extension,which allows us to meet all of our customers' requirements.

The motor cover: the nozzle tip(closed high temperature bearing).



PARAMETERS

Parameter Name Parameter Value
AC/DC
AC
Type
asynchronous
Protection class
IP55
Configuration
  • aluminum
  • stainless steel
  • small
Other characteristics
reversible
Power (W)
180 - 18500
Rotational speed (rpm)
840 - 2940
