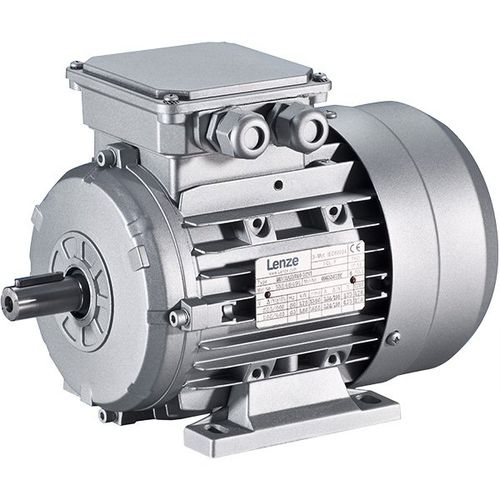

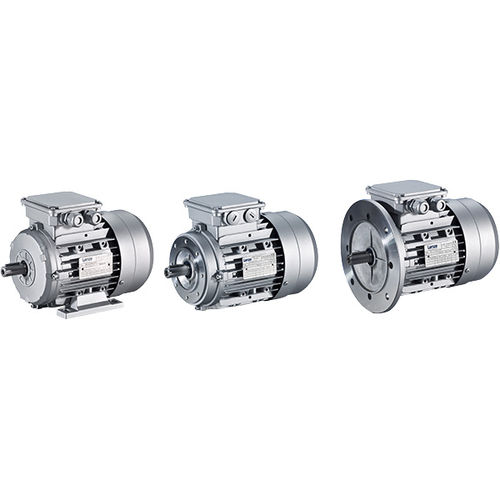

The energy-efficient, inverter-optimized MF three-phase AC motors are particularly suitable for tasks that demand large setting ranges with minimal sizes.

- Setting range up to 1:24 with constant torque
- More dynamic than conventional three-phase AC motors
- Optimized for use as geared motors with g500 gearboxes and i510 cabinet, i550 cabinet, and i550 protec frequency inverters

Parameter Name	Parameter Value
AC/DC	AC
Type	asynchronous
Protection class	IP55
Configuration	with brake
Number of poles	4-pole 6-pole 2-pole
Cooling mechanism	self-ventilated
Applications	with built-in encoder
Other characteristics	high-efficiency IE2 inverter operated
Power (W)	550 - 22000
Torque (Nm)	1 - 60
Rotational speed (rpm)	3400 - 3560
Operating temperature (°C)	-20 - 40
