Integrated position transducers
Incremental encoder sincos 1Vpp 2048 pulses/turn (standard)
Incremental encoder Line Driver TTL,1024 pulses/turn
Bipolar Resolver
Thermal Probe

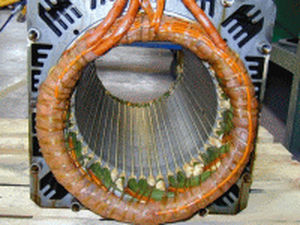

The probe KTY84-130 is casted in the stator windings (the D.Electron Z-Star2 digital drive system monitors the motor temperature during operations)
Connections
The standard execution has a terminal block for power and a connector for transducer and fan. In the standard execution the terminal-block box is in the upper side, connections toward left by observing from the shaft output side. D.Electron may supply cables conform to the most severe environmental conditions
Stand-by brake
Optional on any size
Manufacturing shape
The standard is B3; optionally all the solutions conform to the IEC34-7 are available
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
|
| Type |
induction
|
| Number of poles |
bipolar
|
| Applications |
spindle
|
| Power (W) |
3000 - 100000
|
| Rotational speed (rpm) |
750 - 750
|
