AC motor KOD series

AC motor KOD series

AC motor KOD series

About

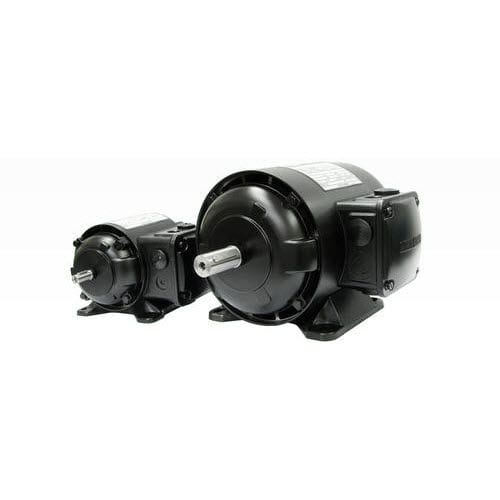

GEORGII KOBOLD – The motors in the KOD series are high-quality, three-phase, squirrel-cage induction motors with special mechanical characterisics. Through the use of smooth aluminum housings, molded stators and double-walled cooling jackets, the KOD asyncronous motors are very robust and suitable for applications with intermittent operation and high switching frequencies. These AC work horses are characterized by high overload capacities, smooth running characteristics and extreme reliability. If desired, they can also be fitted with external, B-side blowers for extra cooling.

• High power reserves
• High switching frequency
• Robust construction and high reliability
• Quiet and maintenance free
• Double-jacket cooling
• Blowers available as needed
• Choices of different mounting versions
• Flanges according to DIN 42 955 (increased flange accuracy upon request)
• Thermal class F
• Compliant with IE2 according to EU Directive 640/2009
• Available with built-in thermal winding protection
• Also available as a gear motor
• Suitable for use with frequency converters



PARAMETERS

Parameter Name Parameter Value
AC/DC
  • AC
  • three-phase
Type
asynchronous
Voltage (V)
220 - 220
Protection class
robust
Configuration
  • squirrel cage
  • aluminum
Number of poles
  • 2-pole
  • 4-pole
  • 6-pole
Other characteristics
high-power
Power (W)
90 - 3000
Torque (Nm)
0.41 - 13.6
Rotational speed (rpm)
700 - 3400
