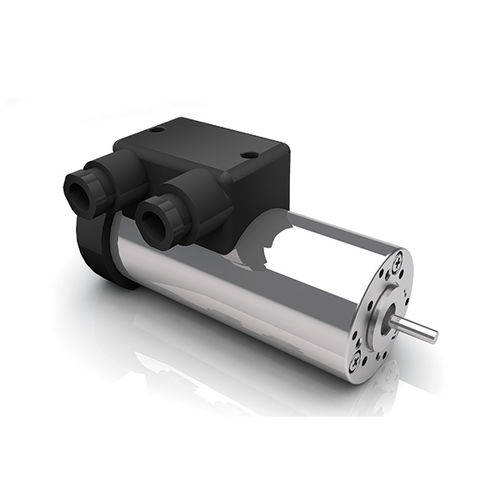

AC motor KD 52.1x60-2

AC motor KD 52.1x60-2

AC motor KD 52.1x60-2

About


Rugged design
Maintenance free during lifetime
Ball-bearings and surface cooling by built-in blower for maximum lifetime
Three-phase, two-pole design
Reversible rotational direction
Available in different lengths
Can be combined with gearboxes
IP 44 protected when flange-mounted
Insulation material according to VDE 0530, corresponds to insulation class F
Surface protected by passivated housing
End shields made of die-cast aluminium



PARAMETERS

Parameter Name Parameter Value
AC/DC
  • AC
  • three-phase
Voltage (V)
220 - 220
Configuration
with start capacitor
Number of poles
2-pole
Power (W)
20 - 20
Torque (Nm)
0.075 - 0.075
Rotational speed (rpm)
2600 - 2600
