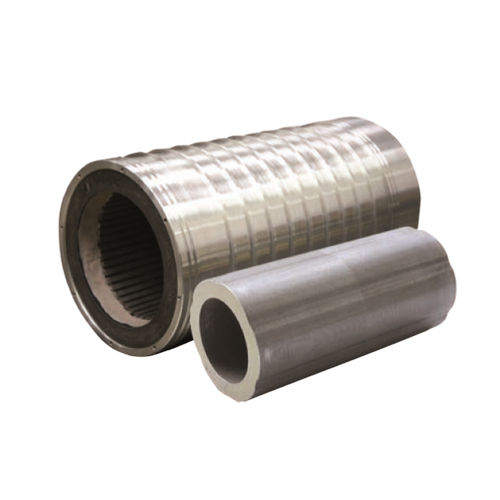

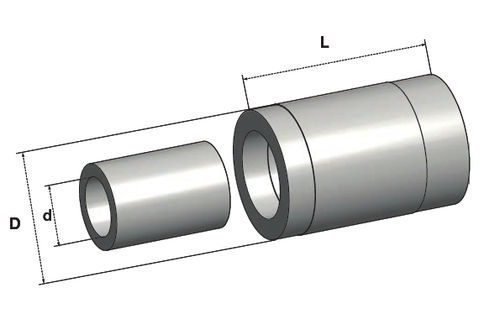

HKW-series frameless spindle motor kits are designed for direct integration within the machine mechanics and offer high torque at slow speed and very high speed at constant power. With 400VAC windings, power ratings to 230kW and speeds to 50000 min-1

HKW motors are high performance permanent magnet synchronous servo motors for spindle applications up to 230 kW. Delivered as separate components to be integrated into the mechanical structure of the machine, HKW motors benefit from the use of field weakening, in order to achieve both high torque at slow speed, and very high maximum speed at constant power.

Applications:
• Tooling Machines

Technical Overview:
• Motor Technology : permanent magnet synchronous servo motor kit
• Frame Sizes : 85mm | 108mm | 155.5mm | 195mm | 242mm | 310mm
• Cooling : Water Cooled (standard) | Air-Cooled / Natural Convection (on request)
• Protection Level : IP00
• Feedback Sensors : Without Sensor | Resolver (optional)
• Marking : CE

Features:
• Kit solution leading to simplified mechanical design
• Very high speed capabilities - up to 50 000 min-1
• Constant power operation up to 10 x base speed: no oversizing of the drive
• High dynamic performance and power density - increased productivity and reduced size compared to induction motors
• Cold permanent magnet technology - reduced heating in the bearings compared to induction motors, no dilatation effect
• Compatibility with third-party drives - Siemens / Fanuc

Parameter Name	Parameter Value
AC/DC	AC
Type	synchronous
Voltage (V)	480 - 480
Configuration	permanent magnet frameless
Number of poles	4-pole 6-pole 8-pole
Cooling mechanism	air-cooled water-cooled
Applications	spindle
Other characteristics	high-efficiency high-torque
Power (W)	2300 - 230000
Torque (Nm)	4.2 - 4.2
Rotational speed (rpm)	260 - 50000
Diameter (mm)	85 - 310
