5 different lamination variants from 56mm up to 93mm in diameter, with power levels starting with very low watts up to 2500W offering the right solution for any drive motor n
Universal motors have been part of IME’s history since its foundation.

They were first designed as low power electric motors for small appliances. But through the years a variety of versions was developed and today the range reaches up to 2500W.

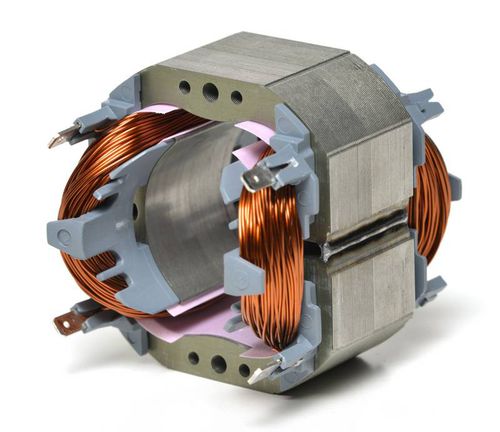

The typical characteristic of universal commutator electric motors is that they can be powered either by AC or DC (hence the definition of “universal”). Such motors consist of a wound stator and a wound rotor with slip ring terminals, connected together in series through two graphite brushes.

One limit of this type of motor is represented by the consumption of the carbon brushes: however, IME universal motors, through a special design and implementation of advanced technical solutions as well as optimizing the manufacturing process, have achieved excellent life targets making them suitable for a wide range of professional electrical machines.

IME universal electric motors can reach speeds that can vary, depending on the needs of the customer, between 5,000 and 35,000 rpm’s.

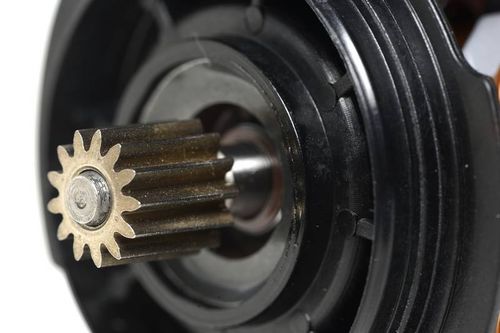

The motor shaft is normally assembled on two ball bearings; however, there are also versions with lubricated bronze sleeve bearings with synthetic oils that are resistant to high temperatures. Over the years IME has developed numerous mechanical versions of universal motors that are currently available to customers. Alternatively, IME can provide a specific analysis tailored to the needs of each customer through co-designing.

Parameter Name	Parameter Value
AC/DC	AC
Type	induction universal
Voltage (V)	220 - 220
Configuration	with slip ring rotor
Applications	for washdown applications
Power (W)	400 - 400
Rotational speed (rpm)	22000 - 22000
Diameter (mm)	76 - 76
