About
Used for step engine control
Types of engines connected: 4-, 3- or 2-phase
CAN 2.0 data interface

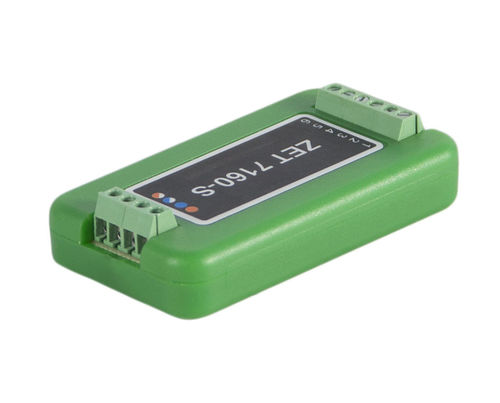

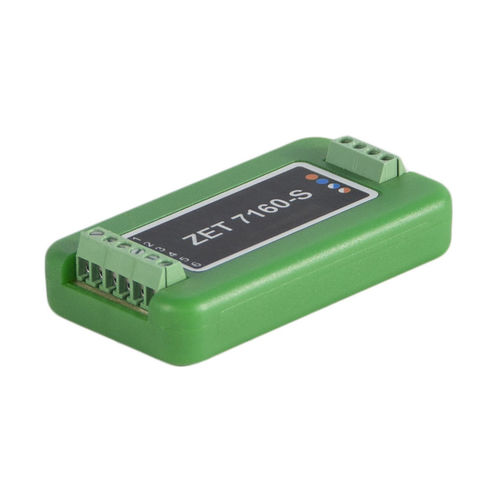

ZET 7160-S is a step engine control digital unit with CAN 2.0 interface.
A step control signal is fed from the digital port. It determines the number of steps the step engine must be turned by, and the speed the step engine is to move with.
To implement a feedback, ZET 7160-E digital encoder may be used.
The ZET 7160-S step engine control unit can be used individually or as a part of automated measuring systems. The module control in the ZETLAB system is performed in the “Device Manager” program
PARAMETERS
| Parameter Name | Parameter Value |
|---|---|
| AC/DC |
AC
|
| Motor type |
stepper
|
| Other characteristics |
digital
|
| Input voltage |
Max.: 24 VMin.: 9 V
|
| Output voltage |
5 V
|
