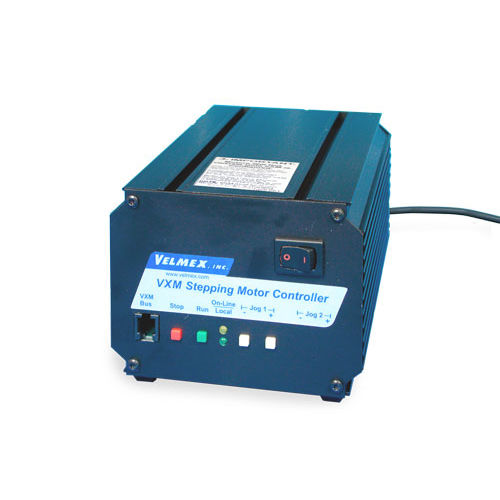

Velmex VXM Controller Systems are components that drive motorized Velmex products including UniSlides®, BiSlides®, XSlides™ and Velmex Rotary Tables. The VXM's advance design delivers high, consistent performance and insures they are very efficient, reliable and easy to program.

Velmex pioneered the development of a microprocessor-based indexer/driver controlling one, up to four axes in a single system. This 2-phase, unipolar stepper motor controller has the capability to drive and control precise movements, multi-axis and velocity. Velmex's VXM Controller System is capable of controlling to 4 motors, 1 motor at a time. Also two motors can be controlled simultaneously for coordinated motion.

Velmex VXM Systems can be used with a PC, Tablet, Laptop or PLC or can run standalone. Velmex also offers a simple, variable speed and teachable two-move version of the popular VXM™ series of step motor controller systems.

VXM-1 (standard) – A single-axis programmable control and driver for one motor.

Parameter Name	Parameter Value
AC/DC	AC
Motor type	stepper
Other characteristics	programmable single-axis
Input voltage	Max.: 240 VMin.: 100 V
Current (A)	2 - 2
