Interfaces for stepping motor output stages up to 150 kHz: 2
Interfaces for incremental encoders to 1 MHz: 2
Encoder power supply direct from the module via the connectors
Monitoring of all external supply voltages
Linear or sine shaped acceleration profiles
External set or integrated profiles

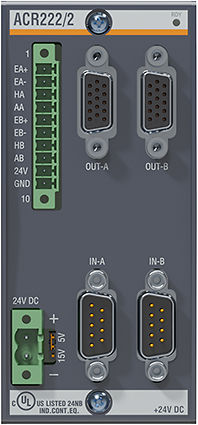

The axis controller module ACR222/2 is a encoder interface module to operate one / two (micro) stepping motor output stages with stepper frequencies of up to 150 kHz.

Parameter Name	Parameter Value
AC/DC	AC
Motor type	linear array
Other characteristics	multi-axis integrated
Input voltage	Max.: 30 VMin.: 0 V
Output voltage	Max.: 34 VMin.: 0 V
Current (A)	10 - 10
