STANDARD VERSION
2, 4, 6 and 8 poles
Protection degree: IP55
B3 or B35 frame

Aluminium frame
230/400Vac 50/60Hz power supply
KLIXON thermocontact

Cast iron frame
400/690Vac 50/60Hz power supply
tropicalized
PTC thermistor

OPTIONS
Protection degree: IP55-66-56
Other voltage supply
Other size and pole numbers
B14 and B34 frame
H class windings
Brake
Encoder

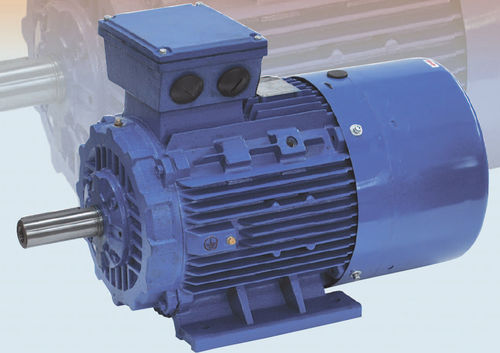

ASM series asynchronous motors are suitable for flux vector type controllers
in variable speed applications.
The characteristics of this series are:
> indipendent cooling system for full torque at low speed
> three-phase, 2,4, 6 and 8 pole stator winding
> aluminium frame up to 132 frame
> cast iron from 160 up to 355 frame
> thermal protection by thermostat embedded in stator winding
> high overload capability
> insulation class F EN60034-1 (IEC 34-1)
> degree of protection IP55
> IE2, high efficiency class IE 60034-30
> upon request we can provide motors with IE3 PREMIUM efficiency class
IE 60034-30

Parameter Name	Parameter Value
AC/DC	AC three-phase
Type	asynchronous
Protection class	IP55
Power (W)	0 - 0 200 - 200
Torque (Nm)	226 - 226 18 - 18
