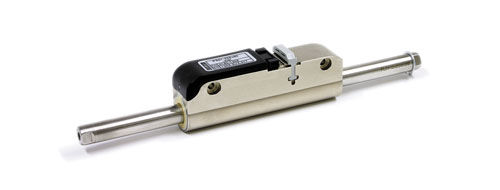

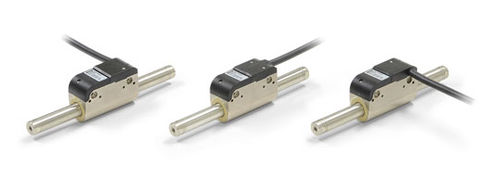

The Servotube from Rodriguez is a three phase brushless linear motor. Its
magnets are arranged in the form of a round bar. Therefore, they can ope-
rate free from lateral forces. An integrated measuring system consisting of
Hall sensors provides reliable positioning data even under the roughest am-
bient conditions. In a wide range of speeds the linear motor is very well sui-
ted for high accelerations. It is maintenance and play-free, and therefore
able to convince through the high precision and strength it demonstrates.
Rodriguez linear motors consume very little electricity, do not require any
additional cooling and ensure a smooth running. They can be operated with
all industry-common servo controllers and are available as individual mo-
dules or as complete systems. If necessary, several motors can be moun-
ted on a single axis.
Features and benefits of the Rodriguez linear motors
High accelerations
Wide speed range
Highest precision
High stability
Maintenance free
No play
Also available as a miniature version oil mm
Low power consumption
No additional cooling required
Smooth running
Can be operated with all industry-common servo controllers
Single modules and systems
Several motors on one axis

Parameter Name	Parameter Value
Type	AC
Other characteristics	tubular three-phase
