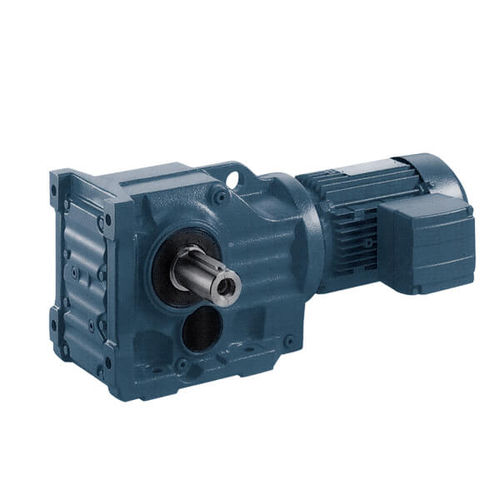

AC gearmotor K series

About


FEATURES:
1. Compact structure, modular design
2. High efficiency of the gear units of over 90%
3. Long service life
4. Multi-stage(2 or 3 stages) gear units for low output speed
5. Hollow output shaft with the keyed connection, shrink disk, splined hollow shaft, or torque arm
6. Can be combined with other types of gearboxes

Rated Power:0.18kW~200kW
Max. Torque:Up to 50000N.m
Gear Arrangement: Hardened Helical-bevel Gears
Shafts Position: Right Angle
Ratio:5.36~178.37
Installation Form: Foot, Flange, Shaft Mounted

Installation:

Foot-mounted
B5 Flange-mounted
B14 Flange-mounted
Shaft-mounted

Lubrication:

Oil-bath and Splash Lubrication

Cooling:

Natural Cooling

1. Housing: Cast Iron
2. Gears: Helical-bevel Gears
3. Input Configurations:
Equipped with Electric Motors
Solid Shaft Input
IEC-normalized Motor Flange
4. Applicable Motors:
Single Phase AC Motor, Three Phase AC Motor
Brake Motors
Inverter Motors
Multi-speed Motors
Explosion-proof Motor
Roller Motor
5. Output Configurations:
Solid Shaft Output
Hollow Shaft Output



PARAMETERS

Parameter Name Parameter Value
Motor type
AC
Type
  • helical
  • bevel
Shaft orientation
right angle
Power (W)
  • 100 - 500
  • 10 - 50
  • 50 - 100
Torque (Nm)
10000 - 10000
Other characteristics
  • compact
  • modular
  • efficiency
